SKY13322-375LF The Skyworks Solutions SKY13322-375LF is a SP4T RF switch designed for general purpose applications. It operates within a frequency range of 20MHz to 6GHz.
Mfr Part #:

SKY13322-375LF

Available from 4 distributors
Mfr Name: Skyworks Solutions
Skyworks Solutions
The Skyworks Solutions SKY13322-375LF is a SP4T RF switch designed for general purpose applications. It operates within a frequency range of 20MHz to 6GHz.
✓ Total Stock: 15,685 pcs
$ Price Range: $0.75

SKY13322-375LF Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
9,000 pcs
On Request
9000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
5,017 pcs
On Request
5017 pcs On Request 1 On Request On Request 0932+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,651 pcs
On Request
1651 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
17 pcs
On Request
17 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SKY13322-375LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit
Frequency Range
IIP3
Impedance
Insertion Loss
Isolation
Mounting Type
Operating Temperature
Operating Voltage
P1dB
RF Type
Supplier Device Package
Test Frequency
Topology
Voltage
View Similar Products (0)

SKY13322-375LF Description

Short technical summary and product information.

The Skyworks Solutions SKY13322-375LF is a Single Pole Four Throw (SP4T) RF switch suitable for general-purpose applications. It operates across a wide frequency range from 20MHz to 6GHz, with a test frequency of 6GHz.



Key electrical characteristics include a P1dB of 30dBm, an IIP3 of 51dBm, and an impedance of 50 Ohms. The insertion loss is rated at 2dB, and isolation is 18dB. The device operates with a supply voltage ranging from 1.8V to 5V.

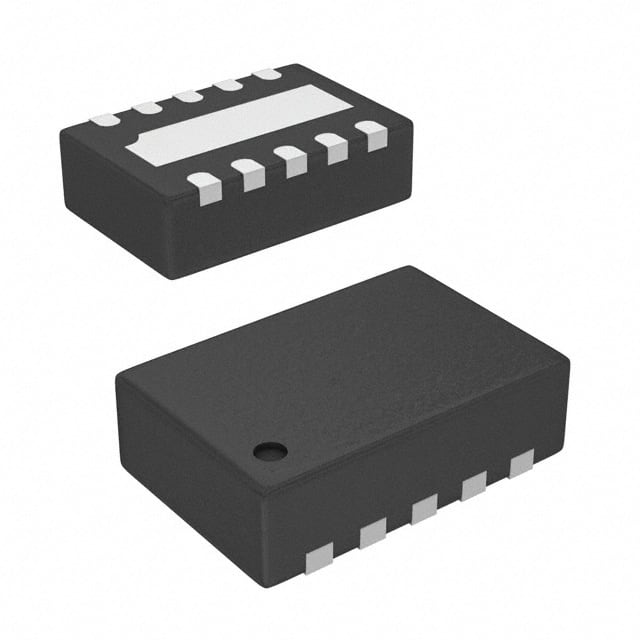

This RF switch is designed for surface mounting and comes in a 10-MLPD (3x2) package with an exposed pad. The operating temperature range is -40°C to 85°C. It is classified as RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1 (Unlimited).



This reflective topology switch is ideal for various RF applications requiring signal switching capabilities within the specified frequency and power handling parameters.

SKY13322-375LF Quick Information

Product Type: RF Switch
Canonical Name: SKY13322-375LF SP4T RF Switch
Subcategory: RF Switch

SKY13322-375LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SKY13322-375LF Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

SKY13322-375LF Features

  • SP4T RF switch for general purpose use.
  • Operates from 20MHz to 6GHz frequency range.
  • Features 30dBm P1dB and 51dBm IIP3.
  • 1.8V to 5V supply voltage range.
  • Surface mountable in 10-MLPD package.

SKY13322-375LF Applications

  • Suitable for RF switching in wireless devices.
  • Used in test equipment for frequency selection.
  • Ideal for signal routing in communication systems.
  • Applicable in base station antenna switching.
  • Suitable for RF signal distribution in IoT applications.

SKY13322-375LF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the SKY13322-375LF?

The operating voltage is 1.8V to 5V.

What package type is the SKY13322-375LF supplied in?

It is supplied in a 10-MLPD (3x2) package.

What is the operating temperature range of the SKY13322-375LF?

The operating temperature range is -40°C to 85°C.

Is the SKY13322-375LF RoHS compliant?

The RoHS status is ROHS3 Compliant.

What is the frequency range of the SKY13322-375LF?

The frequency range is 20MHz to 6GHz.

What is the P1dB of the SKY13322-375LF?

The P1dB is 30dBm.

What is the isolation rating for the SKY13322-375LF?

The isolation is 18dB.
