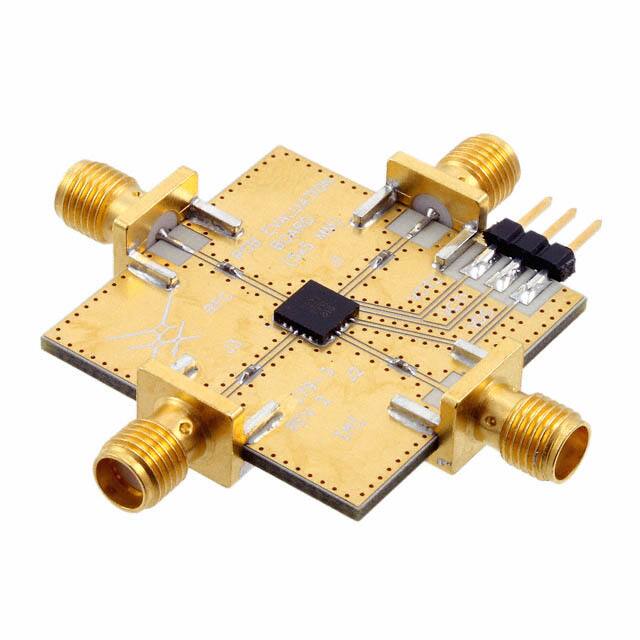

This RF evaluation board, the SKY13277-355LF-EVB from Skyworks Solutions, is designed to facilitate the testing and development of the SKY13277-355LF SP3T absorptive switch. The switch itself operates within a frequency range of 500 MHz to 2.5 GHz, making it suitable for various RF applications.
The SKY13277-355LF-EVB board allows engineers to evaluate key performance characteristics such as insertion loss, isolation, and return loss across the specified frequency bands. The SKY13277-355LF switch features high isolation and absorptive ports, which are crucial for maintaining good RF impedance match regardless of the switch state. The evaluation board comes with the necessary board(s) for setup and testing.
Designed for commercial applications, the SKY13277-355LF switch is built on a pHEMT GaAs FET technology and includes an integrated silicon CMOS driver. The evaluation board supports surface mount technology for integration into development setups. It is available in a lead-free and RoHS-compliant package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The evaluation board supports a frequency range of 500 MHz to 2.5 GHz.
Maximum insertion loss is 1.1 dB from 0.5-1.0 GHz, 1.3 dB from 1.0-2.0 GHz, and 1.5 dB from 2.0-2.5 GHz.
Minimum isolation is 60 dB from 0.5-1.0 GHz, 53 dB from 1.0-2.0 GHz, and 49 dB from 2.0-2.5 GHz.
The switching time (on/off) is 15 ns maximum, with rise/fall time of 5 ns maximum.
The minimum input power for 1 dB compression is 30 dBm at VDD=5 V, 0.5-2.5 GHz.
Minimum return loss is 11 dB from 0.5-1.0 GHz, 9 dB from 1.0-2.0 GHz, and 8 dB from 2.0-2.5 GHz.
The switch IC is housed in a 20-lead exposed-pad plastic package with surface mount mounting.
