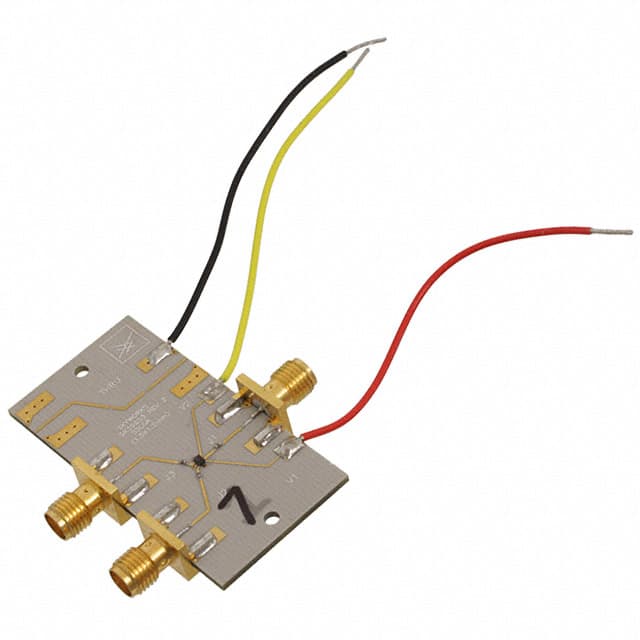

The Skyworks Solutions SKY13276-334-EVB is an evaluation board specifically designed for the SKY13276 GaAs pHEMT Single-Pole, Double-Throw (SPDT) antenna switch. This board facilitates the testing and development of applications utilizing the SKY13276, which is ideal for WLAN 802.11 a/b/g/n networks, public service bands, and ISM/WiMAX bands.
The SKY13276 switch itself offers a wide frequency range from 0.1 GHz to 6.0 GHz, with a typical insertion loss of only 0.7 dB. It boasts high linearity, with an IIP3 of +53 dBm at a 3 V control voltage, and provides 20 dB typical isolation at 2.4 GHz. The switch is manufactured in a compact 6-pin LGA package measuring 1.5 x 1.2 x 0.8 mm.
This evaluation board allows engineers to easily integrate and test the SKY13276 switch's capabilities in their designs. Its features make it suitable for transmit/receive switching or antenna diversity applications. The board supports positive low voltage control (0 and 3 V) and is designed for surface mount applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The evaluation board supports a frequency range of 0.1 GHz to 6.0 GHz.
The typical insertion loss is 0.7 dB over the 0.1 to 6.0 GHz frequency range.
The linearity (IIP3) is +53 dBm typical at a 3 V control voltage.
The isolation is 20 dB typical at 2.4 GHz.
The switch operates with positive low voltage control of 0 V and 3 V.
The switch is in a 6-pin LGA package with dimensions of 1.5 x 1.2 x 0.8 mm.
The operating temperature range is -40°C to +85°C, and the storage temperature range is -65°C to +150°C.
