| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| For Use With | |
| Frequency | |
| Mounting Type | |
| Operating Temperature | |
| Supplied Contents | |
| Type |

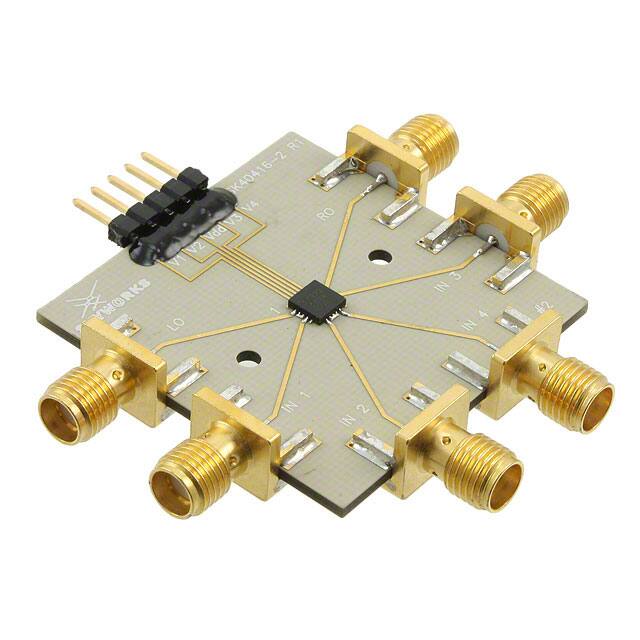

The Skyworks Solutions SKY13272-340LF-EVB is an evaluation board designed to test and demonstrate the capabilities of the SKY13272-340LF RF switch. This board facilitates the evaluation of a 4x2 switch matrix operating within a frequency range of 250 MHz to 2.15 GHz.
The SKY13272-340LF switch itself offers features such as high interport isolation up to 40 dB at 0.95 GHz and low insertion loss. The evaluation board allows engineers to explore these characteristics, including insertion loss, isolation, and return loss, under various conditions.
Designed for ease of use, the evaluation board supports the testing of the switch's performance in applications like DBS switching, cable modems, and cable TV systems. It is built with a miniature QFN-20 4 x 4 mm package, and the board itself is RoHS3 compliant, indicating adherence to environmental standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 250 MHz to 2.15 GHz.
The typical insertion loss is 8 dB up to 0.95 GHz and 8.5 dB from 0.95 to 2.15 GHz.
Interport isolation is 40 dB typical up to 0.95 GHz and 31 dB typical from 0.95 to 2.15 GHz.
The operating temperature range is -40 °C to +85 °C.
The switch is in a miniature QFN-20 4 x 4 mm package.
Yes, the board is RoHS3 compliant.
The Moisture Sensitivity Level is 1.
