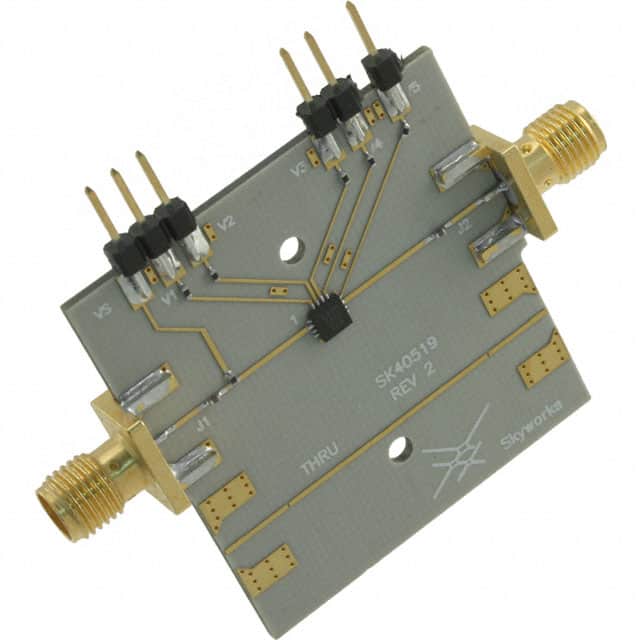

The SKY12328-350LF-EVB is a development board designed by Skyworks Solutions for evaluating the SKY12328-350LF digital attenuator. This board facilitates the testing and implementation of the attenuator in various applications.
The SKY12328-350LF attenuator itself operates across a broad frequency range of 0.5 to 4.0 GHz. It provides a total attenuation range of 15.5 dB, with a least significant bit (LSB) attenuation of 0.5 dB. The device exhibits low insertion loss, measuring 1 dB at 900 MHz. It requires a positive supply voltage between 2.7 V and 5.5 V and consumes very low current, typically less than 100 μA at 5 V.
This evaluation board is suitable for applications such as automatic level control in transceivers for WiMAX, GSM, CDMA, WCDMA, WLAN, Bluetooth, or Zigbee systems, as well as general-purpose signal attenuation in telecommunications and instrumentation. The attenuator is housed in a small, 16-pin QFN package measuring 3 x 3 mm, designed for surface mounting.
The SKY12328-350LF-EVB is supplied with the necessary board(s) for evaluation purposes. The RoHS status is compliant, and the Moisture Sensitivity Level (MSL) is 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The evaluation board supports operation from 0.5 to 4.0 GHz.
The attenuator offers a total attenuation range of 15.5 dB.
The LSB attenuation is 0.5 dB.
The insertion loss is 1 dB at 900 MHz.
The device requires a positive supply voltage between 2.7 V and 5.5 V.
The current consumption is typically less than 100 μA at 5 V.
The attenuator is supplied in a 3 x 3 mm QFN package.
