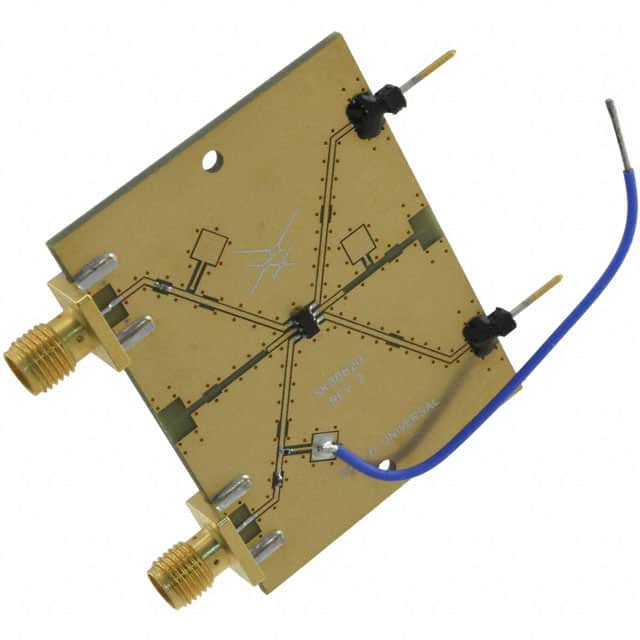

The SKY12324-73LF-EVB is a development board designed for the SKY12324-73 digital attenuator from Skyworks Solutions. This evaluation board facilitates the testing and implementation of the attenuator in various applications.
The SKY12324-73 digital attenuator is a two-bit GaAs pHEMT device with attenuation steps of 4 dB and 8 dB, offering a total of 12 dB. It operates across a frequency range of 0.5 GHz to 4.0 GHz. The attenuator is housed in a compact SOT-6 package, suitable for surface mount applications.
This evaluation board is ideal for applications requiring precise attenuation control, such as cellular telephone base stations, test instrumentation, and wireless data level control circuits. The board allows for independent switching of the attenuation bits via single, positive control voltages.
Key features of the attenuator include low insertion loss and internally matched 50 Ohm RF ports. The board itself is designed to showcase these capabilities, enabling engineers to evaluate performance in target environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The evaluation board operates from 0.5 GHz to 4.0 GHz.
The board provides two attenuation bits of 4 dB and 8 dB that can be independently switched.
The maximum RF input power is +31 dBm.
The operating temperature range is -40 °C to +85 °C.
The evaluation board uses a SOT-6 package.
