Mfr Part #:

SKTKABE010

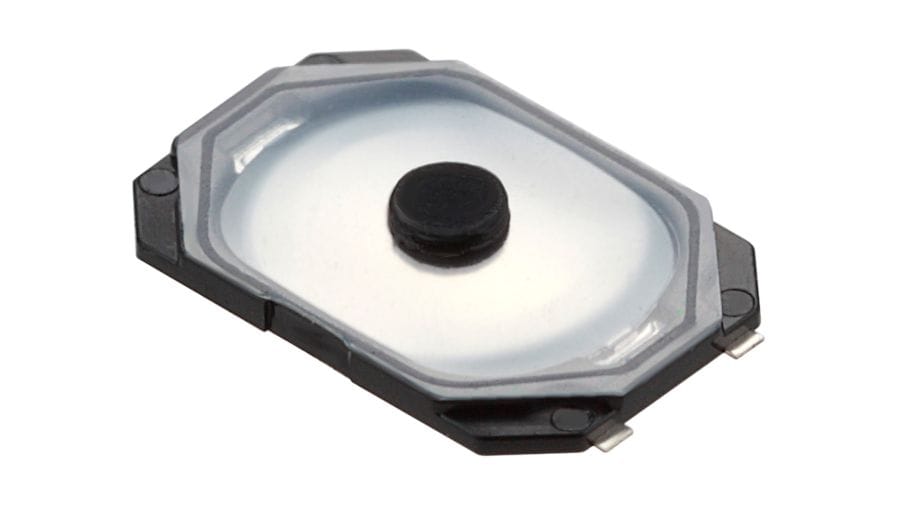

The Alps Alpine SKTKABE010 is a surface mount TACT Switch™ from the SKTK Series. It offers a long operating life of 1 million cycles and IP6X equivalent/IPX7 dust and water protection.

✓ Total Stock: 904 pcs

$ Price Range: $1.50

SKTKABE010 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	792 pcs On Request	792 pcs	On Request	1	On Request	On Request	16+	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	112 pcs On Request	112 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SKTKABE010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Alps Alpine
Dimensions	5.9 x 4.0 x 0.78 mm
Insulation Resistance	100 MΩ min.
Mounting Type	Surface Mount
Operating Force	2.5 N
Operating Temperature Range	-30℃ to +85℃
Tape Width	16 mm

View Similar Products (0)

SKTKABE010 Description

Short technical summary and product information.

The Alps Alpine SKTKABE010 is a TACT Switch™ from the SKTK Series, designed for surface mount applications. This particular model features a sharp feeling type operation and a projection for ease of use.

Key specifications include an operating force of 2.5N, a travel of 0.23mm, and an impressive operating life of 1,000,000 cycles. The switch boasts an initial contact resistance of 500mΩ max. and is rated for IP6X equivalent/IPX7 dust and water protection, making it suitable for environments where ingress resistance is crucial.

With dimensions of 5.9x4.0x0.78mm, this compact switch is designed for integration into various electronic devices. It operates within a temperature range of -30℃ to +85℃ and has absolute maximum ratings of 12V DC and 50mA. Electrical performance includes an insulation resistance of 100MΩ min. and a voltage proof of 100V AC.

Applications for this TACT Switch™ include mobile devices, smartphones, tablets, headsets, wearables, notebooks, and peripherals. The product is supplied in tape and reel packaging, with a standard package quantity of 10,000 pieces.

SKTKABE010 Quick Information

Product Type: TACT Switch™

Series: SKTK Series

Canonical Name: Alps Alpine SKTK Series TACT Switch™

Subcategory: Tact Switch

SKTKABE010 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SKTKABE010 Estimated Pricing

Qty	Low	High
1+	$1.50	$1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

SKTKABE010 Features

Surface mount TACT Switch™.
1,000,000 cycles operating life.
IP6X equivalent/IPX7 dust and water protection.
Compact dimensions: 5.9x4.0x0.78mm.
Suitable for mobile and wearable devices.

SKTKABE010 Applications

Used in mobile smartphones.
Suitable for tablets.
Ideal for headsets.
Applicable to wearables.
Designed for notebooks.

SKTKABE010 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating force of the Alps Alpine SKTKABE010 TACT Switch™?

The operating force is 2.5 N.

What is the travel distance for the SKTKABE010 TACT Switch™?

The travel distance is 0.23 mm.

What is the rated operating life of the Alps Alpine SKTKABE010?

The rated operating life is 1,000,000 cycles.

What is the initial contact resistance of the SKTKABE010 TACT Switch™?

The initial contact resistance is 500 mΩ maximum.

What are the dimensions of the Alps Alpine SKTKABE010 TACT Switch™?

The dimensions are 5.9 x 4.0 x 0.78 mm.

Does the SKTKABE010 TACT Switch™ offer dust and water protection?

Yes, it is rated IP6X equivalent/IPX7 for dust and water protection.

What is the operating temperature range for the Alps Alpine SKTKABE010?

The operating temperature range is -30℃ to +85℃.
