| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Lead Style | |
| Mounting Type | |
| Operating Force |

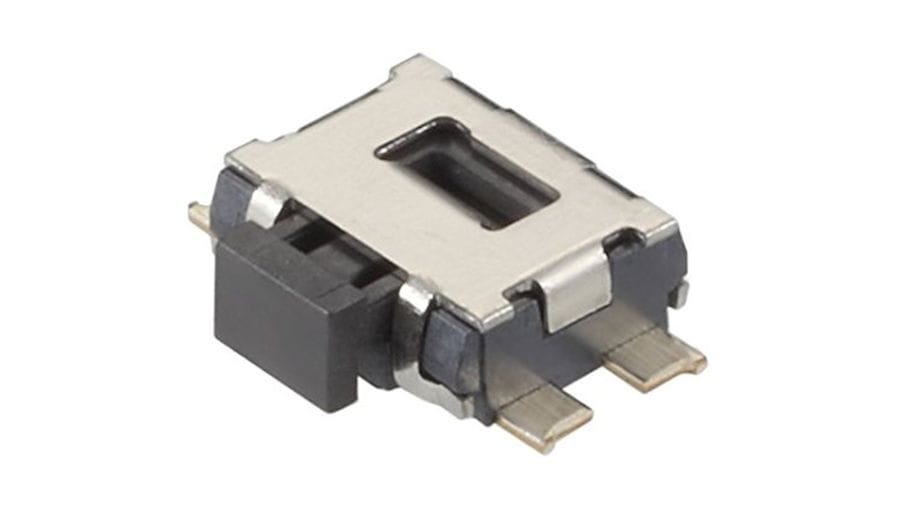

The Alps Alpine SKSCLBE010 is a surface mount tactile switch belonging to the SKSC Series. This compact and thin switch measures 3.5x3.55x1.25mm and features a half-mount type design with excellent soldering strength. It is designed for applications requiring a sharp feeling operation.
Key specifications include an operating force of 1.6N, a travel distance of 0.2mm, and an impressive operating life of 100,000 cycles. The initial contact resistance is a maximum of 100mΩ. This model includes guide bosses.
This tactile switch is suitable for various applications, including mobile devices like smartphones and tablets, as well as notebooks and peripherals. The surface mount design facilitates automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Alps Alpine SKSCLBE010 has an operating force of 1.6N.
The travel distance for the SKSCLBE010 tactile switch is 0.2mm.
The SKSCLBE010 is rated for 100,000 cycles of operation.
The initial contact resistance of the SKSCLBE010 is a maximum of 100mΩ.
The dimensions of the SKSCLBE010 are 3.5mm x 3.55mm x 1.25mm.
The SKSCLBE010 supports surface mount type.
The standard package quantity for the SKSCLBE010 is 50,000 pieces.
