| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Depth | |
| Dimensions | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Resistance | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Voltage |

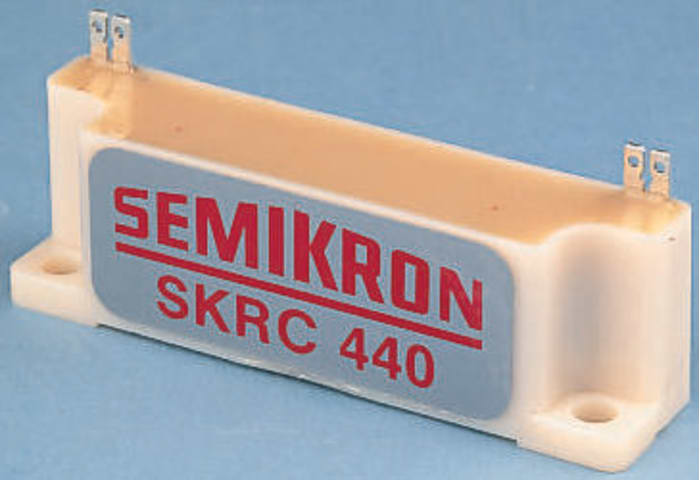

The Semikron SKRC 440-2 is an RC snubber network designed for applications up to 500A rms load current. Its primary function is to limit the rate of rise of voltage spikes, protecting SCRs from exceeding their dV/dt ratings. This module also aids in improving SCR latching current for low-level inductive loads.
Key electrical specifications include a capacitance of 47nF, a voltage rating of 440V AC, and dual resistance values of 68Ω and 9Ω, with a capacitance tolerance of ±10%. The operating temperature range is from -40°C to +50°C.
Mechanically, the unit measures 92 x 21 x 28mm. It features a tab mounting type and has 2 elements. The snubber network is encapsulated for compatibility with isolated base diode and thyristor modules, with connections made via convenient push-on receptacles.
Warning: These devices are designed for direct connection across a mains supply but should NOT be used in positions where capacitor failure could expose anyone to electric shock.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 47nF.
The AC voltage rating is 440V.
The resistance values are 68Ω and 9Ω.
The capacitance tolerance is ±10%.
The operating temperature range is -40°C to +50°C.
It is a tab mounting type.
