| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
104 pcs
|
104 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Package Quantity | |
| Tape Width |

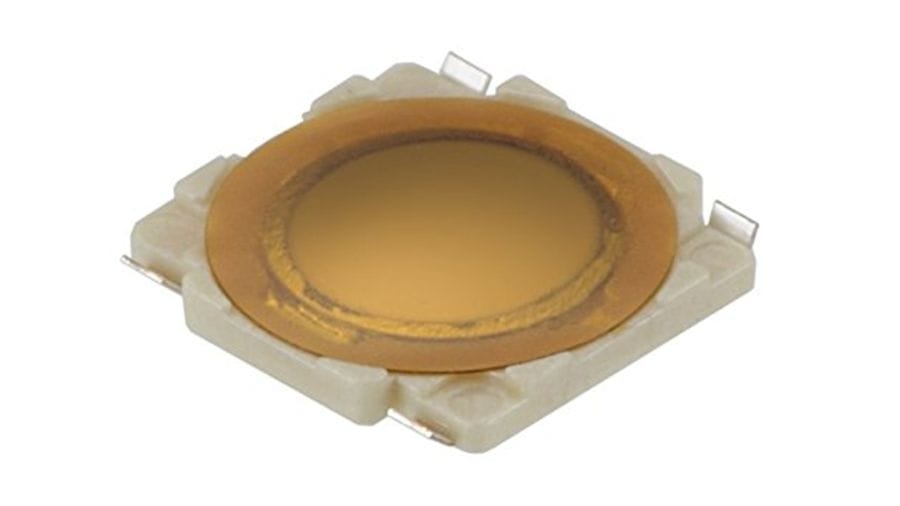

The Alps Alpine SKRBAKE010 is a compact, thin-profile TACT Switch™ designed for surface mounting. Part of the SKRB Series, it offers a sharp feeling actuation and is compatible with automotive applications.
Key electrical specifications include an operating force of 3.5N, a travel of 0.2mm, and an operating life of 200,000 cycles. The initial contact resistance is a maximum of 100mΩ. The switch operates within a temperature range of -40℃ to +85℃.
With dimensions of 4.8mm x 4.8mm x 0.55mm, this TACT Switch™ is suitable for applications requiring space-saving solutions. It is designed for reflow soldering processes, with specific temperature profiles and manual soldering guidelines provided by the manufacturer.
Applications for this series include home appliances, office equipment, and automotive systems such as remote keyless entry and navigation audio systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.32 | $1.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SKRBAKE010 TACT Switch™ has a nominal operating force of 3.5N.
The SKRBAKE010 TACT Switch™ has an operating life of 200,000 cycles.
The dimensions of the SKRBAKE010 TACT Switch™ are 4.8mm x 4.8mm x 0.55mm.
The operating temperature range for the SKRBAKE010 TACT Switch™ is -40℃ to +85℃.
The initial contact resistance of the SKRBAKE010 TACT Switch™ is a maximum of 100mΩ.
The SKRBAKE010 TACT Switch™ is a surface mount type, supplied on tape and reel.
