Mfr Part #:

SKRABGE010

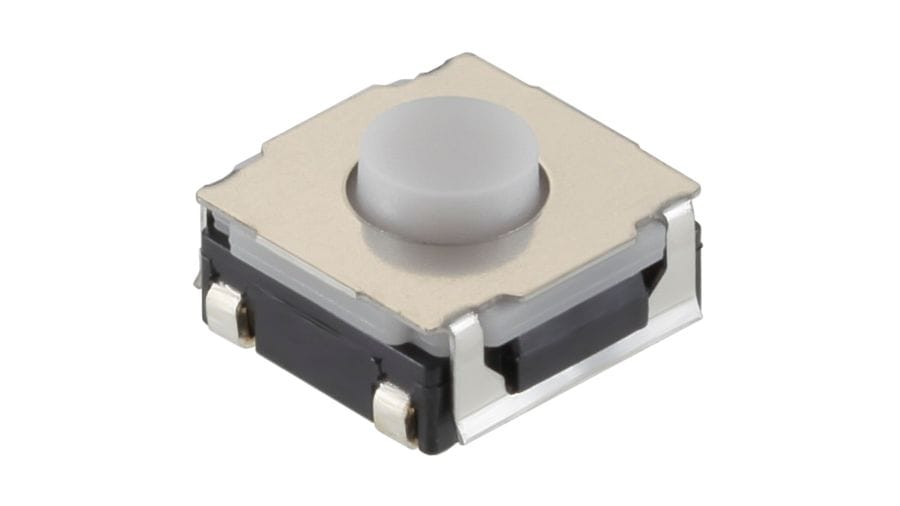

The Alps Alpine SKRABGE010 is a surface mount TACT Switch™ from the SKRA Series. It features a contact resistance of 100mΩ max and an operating life of 4,000,000 cycles.

✓ Total Stock: 172 pcs

$ Price Range: $1.00

SKRABGE010 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Rayichip ✓ Non-Authorised Inventory information	172 pcs On Request	172 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SKRABGE010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Alps Alpine
Contact Resistance	100 mΩ Max.
Current Rating	50 mA
Dimensions	6.2 x 3.5/3.55/5.2 mm
Insulation Resistance	100 MΩ Min.
Operating Temperature	-40 to 90 ℃
Voltage Rating	12 V DC

View Similar Products (0)

SKRABGE010 Description

Short technical summary and product information.

The Alps Alpine SKRABGE010 is a TACT Switch™ belonging to the SKRA Series, designed for surface mount applications. This component is suitable for general electronic equipment and offers a tactile feedback actuation.

Key electrical specifications include a contact resistance of 100mΩ maximum, an insulation resistance of 100MΩ minimum, and a voltage proof of 250V AC for 1 minute. The switch is rated for a maximum of 12V DC at 50mA (resistive load) and has minimum ratings of 1V DC at 10μA. Bounce time is limited to 10ms maximum for both ON and OFF states.

Mechanically, the SKRABGE010 has a travel of 0.3mm and a product height of 3.5mm. It boasts a significant operating life of 4,000,000 cycles. The switch is designed with dust-proof (IP6X equivalent) and water-proof (IPX7) features, although some variations may not be applicable. The operating temperature range is -40 to 90 ℃.

This TACT Switch™ is ideal for applications in mobile devices, industrial equipment, gaming consoles, healthcare devices, home appliances, and automotive systems.

SKRABGE010 Quick Information

Product Type: TACT Switch™

Series: SKRA Series

Canonical Name: Alps Alpine SKRA Series TACT Switch™

Subcategory: Surface Mount Type

SKRABGE010 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SKRABGE010 Estimated Pricing

Qty	Low	High
1+	$1.00	$1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

SKRABGE010 Features

Surface mount TACT Switch™.
100mΩ maximum contact resistance.
Rated for 12V DC at 50mA.
4,000,000 cycles operating life.
IP6X dust-proof and IPX7 water-proof.

SKRABGE010 Applications

Used in mobile devices.
Suitable for industrial equipment.
Applicable in gaming consoles.
Found in healthcare devices.
Used in automotive systems.

SKRABGE010 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating temperature range for the SKRABGE010?

The operating temperature range for the SKRABGE010 is -40 to 90 ℃.

What is the maximum contact resistance of the SKRABGE010?

The maximum contact resistance of the SKRABGE010 is 100 mΩ.

What is the voltage and current rating for the SKRABGE010?

The SKRABGE010 is rated for 12 V DC and 50 mA with a resistive load.

What is the operating life of the SKRABGE010 TACT Switch™?

The SKRABGE010 has an operating life of 4,000,000 cycles.

What are the dust and water-proof ratings for the SKRABGE010?

The SKRABGE010 has IP6X equivalent dust-proof and IPX7 water-proof ratings.

What type of actuation does the SKRABGE010 feature?

The SKRABGE010 features tactile feedback actuation.

What are the dimensions of the SKRABGE010?

The dimensions of the SKRABGE010 are 6.2 x 3.5/3.55/5.2 mm.
