Mfr Part #:

SKRAAQE010

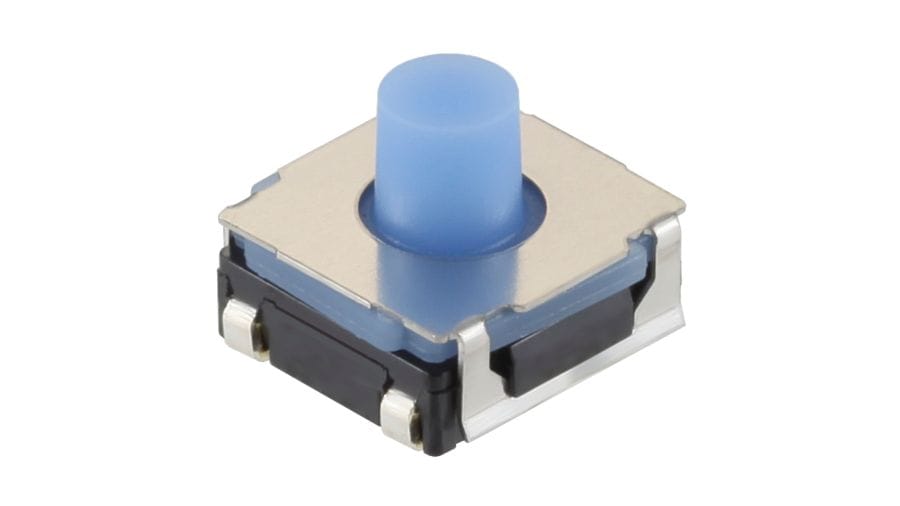

The Alps Alpine SKRAAQE010 is a TACT Switch designed for general electronic equipment. It offers reliable electrical performance with a low contact resistance and a wide operating temperature range.

✓ Total Stock: 165 pcs

$ Price Range: $0.14

SKRAAQE010 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	165 pcs On Request	165 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SKRAAQE010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Alps Alpine
Contact Resistance	100 mΩ Max.
Dimensions	6.2 x 6.2 x 3.5 mm
Insulation Resistance	100 MΩ Min.
Mounting Type	Surface Mount
Operating Temperature	-40 to 90 °C

View Similar Products (0)

SKRAAQE010 Description

Short technical summary and product information.

The Alps Alpine SKRAAQE010 is a surface mount TACT Switch™ designed for general electronic equipment applications. It features a tactile feedback actuation and a Single Pole, Single Throw (SPST) circuit.

This switch operates within a temperature range of -40 to 90 °C. Electrically, it offers a maximum contact resistance of 100 mΩ and a minimum insulation resistance of 100 MΩ. The switch is rated for 12 V DC at 50 mA and has a minimum rating of 1 V DC at 10 μA. Bounce time is kept to a maximum of 10 ms for both ON and OFF states.

The SKRA series, to which this part belongs, is characterized by its middle-travel design and dust-proof (IP6X equivalent) and water-proof (IPX7) capabilities for some variants. The dimensions are typically around 6.2mm square. This series is recommended for new designs and is mass-produced.

Applications for this type of switch include mobile devices, notebooks, peripherals, industrial equipment, robotics, drones, gaming consoles, healthcare equipment, and automotive systems.

SKRAAQE010 Quick Information

Product Type: TACT Switch

Series: SKRA

Canonical Name: Alps Alpine SKRAAQE010 TACT Switch

Subcategory: Tactile Switch

SKRAAQE010 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SKRAAQE010 Estimated Pricing

Qty	Low	High
1+	$0.14	$0.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

SKRAAQE010 Features

Surface mount TACT Switch for general electronics.
Low contact resistance of 100 mΩ maximum.
Wide operating temperature range of -40 to 90 °C.
Dust-proof (IP6X equivalent) and water-proof (IPX7) features.
Reliable tactile feedback actuation.

SKRAAQE010 Applications

Suitable for mobile and notebook devices.
Used in industrial equipment and robotics.
Applicable for healthcare equipment.
Can be used in automotive systems.
Ideal for gaming consoles.

SKRAAQE010 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating temperature range of the SKRAAQE010?

-40 to 90 °C.

What is the operating force of the SKRAAQE010?

0.6 N.

What is the travel of the SKRAAQE010?

0.3 mm.

What is the electrical rating of the SKRAAQE010?

12 V DC 50 mA (resistive load).

What is the operating life of the SKRAAQE010?

4,000,000 cycles.

What is the mounting type of the SKRAAQE010?

Surface Mount.

Is the SKRAAQE010 water and dust resistant?

Yes, it has IP6X equivalent dust protection and IPX7 water resistance.
