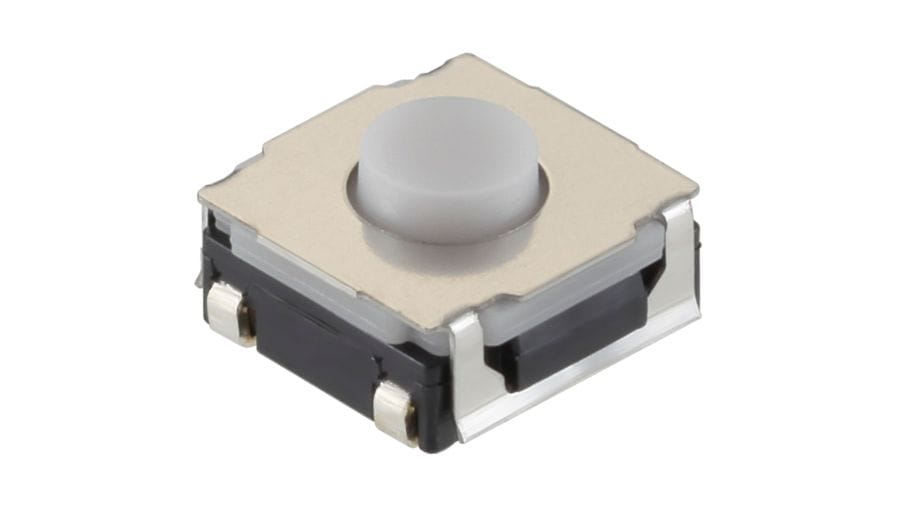

SKRAALE010 The Alps Alpine SKRAALE010 is a TACT Switch designed for general electronic equipment. It features a surface mount type and a tactile feedback actuation.
Mfr Part #:

SKRAALE010

Available from 2 distributors
Mfr Name: Alps Alpine
Alps Alpine
The Alps Alpine SKRAALE010 is a TACT Switch designed for general electronic equipment. It features a surface mount type and a tactile feedback actuation.
✓ Total Stock: 5,095 pcs
$ Price Range: $2.16

SKRAALE010 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
2,095 pcs
On Request
2095 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SKRAALE010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit
Insulation Resistance
Mounting Type
Operating Temperature
View Similar Products (0)

SKRAALE010 Description

Short technical summary and product information.

The Alps Alpine SKRAALE010 is a TACT Switch™ from the SKRA Series, designed for general electronic equipment applications. This surface mount component offers tactile feedback actuation and a Single Pole, Single Throw (SPST) circuit.



Key electrical specifications include a maximum contact resistance of 100 m℆ and a minimum insulation resistance of 100 M℆. The switch is rated for a maximum of 12 V DC at 50 mA and a minimum of 1 V DC at 10 μA. It has an operating life of up to 4,000,000 cycles.



Mechanically, the SKRAALE010 has a travel of 0.3mm and a product height of 3.5mm, with dimensions of 6.2x6.2x3.5mm. It operates within a temperature range of -40 to 90 ℃. The switch also offers IP6X equivalent dust-proof and IPX7 water-proof protection.



Applications for this TACT Switch include mobile devices, notebooks, peripherals, industrial equipment, gaming consoles, healthcare equipment, major home appliances, and automotive systems.

SKRAALE010 Quick Information

Product Type: TACT Switch
Series: SKRA
Canonical Name: Alps Alpine SKRAALE010 TACT Switch
Subcategory: TACT Switch

SKRAALE010 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SKRAALE010 Estimated Pricing

Qty Low High
1+ $2.16 $2.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

SKRAALE010 Features

  • Surface mount TACT Switch
  • Tactile feedback actuation
  • 100mOhm maximum contact resistance
  • 4,000,000 cycles operating life
  • IP6X dust-proof and IPX7 water-proof

SKRAALE010 Applications

  • Used in mobile devices
  • Suitable for industrial equipment
  • Applied in healthcare devices
  • Found in home appliances
  • Integrated into automotive systems

SKRAALE010 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the Alps Alpine SKRAALE010?

The operating temperature range is -40 to 90 ℃ at the switch level, and -20 to 50 ℃ when on taping.

What is the contact resistance of the SKRAALE010 TACT Switch?

The maximum contact resistance is 100 m℆.

What is the operating life of the Alps Alpine SKRAALE010?

The operating life is rated for 4,000,000 cycles.

What are the ingress protection ratings for the SKRAALE010?

It has IP6X equivalent dust-proof and IPX7 water-proof ratings.

What is the RoHS status of the SKRAALE010?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level is 1.
