Mfr Part #:

SKRAAKE010

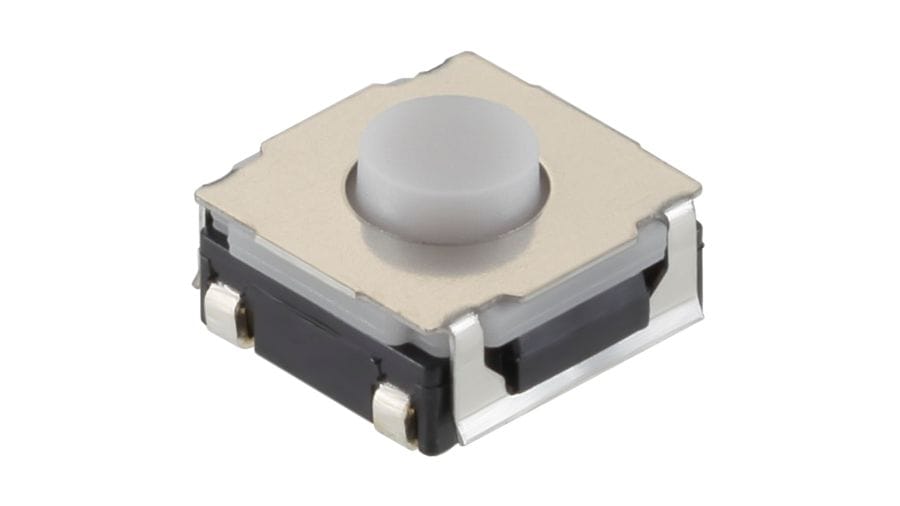

The Alps Alpine SKRAAKE010 is a surface mount TACT Switch designed for general electronic equipment. It features tactile feedback and a compact 6.2mm square footprint.

✓ Total Stock: 1,971 pcs

$ Price Range: $1.00

SKRAAKE010 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	1,961 pcs On Request	1961 pcs	On Request	1	On Request	On Request	1310+	On Request	On Request
Partservice ✓ Non-Authorised Inventory information	10 pcs On Request	10 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SKRAAKE010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Alps Alpine
Circuit	Single Pole, Single Throw
Height	3.5 mm
Insulation Resistance	100 MΩ
Mounting Type	Surface Mount
Operating Temperature	-40 to 90 °C
Storage Temperature	-40 to 90 °C

View Similar Products (0)

SKRAAKE010 Description

Short technical summary and product information.

The Alps Alpine SKRAAKE010 is a TACT Switch™ from the SKRA Series, designed for surface mount applications. This switch offers tactile feedback and is suitable for low current circuits.

Key electrical specifications include a maximum contact resistance of 100 mΩ, a minimum rating of 1 V DC at 10 μA, and an absolute maximum rating of 12 V DC at 50 mA. The switch is rated for an operating life of 100,000 cycles.

Mechanically, the SKRAAKE010 has a travel of 0.3 mm and a product height of 3.5 mm, with overall dimensions of 6.2 x 6.2 x 3.5 mm. It operates within a temperature range of -40 to 90 °C.

This TACT Switch is designed with dust-proof (IP6X equivalent) and water-proof (IPX7) features, making it suitable for various environments. Its applications span across mobile devices, industrial equipment, gaming consoles, healthcare equipment, home appliances, and automotive systems.

SKRAAKE010 Quick Information

Product Type: TACT Switch

Series: SKRA

Canonical Name: Alps Alpine SKRAAKE010 TACT Switch

Subcategory: Surface Mount Type

SKRAAKE010 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SKRAAKE010 Estimated Pricing

Qty	Low	High
1+	$1.00	$1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

SKRAAKE010 Features

Surface mount TACT Switch for general electronics.
Tactile feedback with sharp operation feeling.
100mΩ maximum contact resistance.
Rated for 12V DC at 50mA.
100,000 cycles operating life.

SKRAAKE010 Applications

Suitable for mobile devices and peripherals.
Used in industrial equipment and robotics.
Applicable for gaming and VR/AR systems.
Designed for healthcare equipment.
Can be used in automotive systems.

SKRAAKE010 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating temperature range for the Alps Alpine SKRAAKE010 TACT Switch?

The operating temperature range is -40 to 90 °C.

What is the maximum contact resistance of the SKRAAKE010 TACT Switch?

The maximum contact resistance is 100 mΩ.

What are the voltage and current ratings for the SKRAAKE010 TACT Switch?

The absolute maximum rating is 12 V DC at 50 mA, and the minimum rating is 1 V DC at 10 μA.

What is the operating life of the Alps Alpine SKRAAKE010 TACT Switch?

The operating life is 100,000 cycles.

What are the dimensions of the SKRAAKE010 TACT Switch?

The dimensions are 6.2 x 6.2 x 3.5 mm.

Does the SKRAAKE010 TACT Switch offer water and dust protection?

Yes, it offers IP6X equivalent dust-proof and IPX7 water-proof protection.
