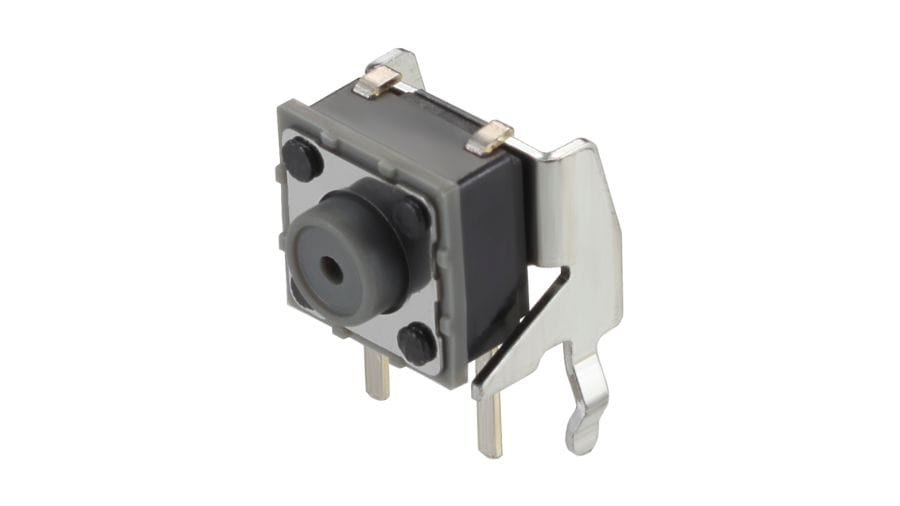

SKQJLBA010 The Alps Alpine SKQJLBA010 is a tactile switch featuring a side push operating direction and a sharp feeling type series. It offers a rating of 50mA at 12V DC.
Mfr Part #:

SKQJLBA010

Available from 1 distributors
Mfr Name: Alps Alpine
Alps Alpine
The Alps Alpine SKQJLBA010 is a tactile switch featuring a side push operating direction and a sharp feeling type series. It offers a rating of 50mA at 12V DC.
✓ Total Stock: 15 pcs
$ Price Range: $0.75

SKQJLBA010 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SKQJLBA010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Insulation Resistance
Lead Style
Mounting Type
Operating Force
Operating Temperature Range
Type
View Similar Products (0)

SKQJLBA010 Description

Short technical summary and product information.

The Alps Alpine SKQJLBA010 is a tactile switch from the SKQJ Series, designed with a snap-in mounting type and a side push operating direction. This dust-proof type switch provides a sharp operation feel and excellent versatility for various applications.



Key electrical specifications include a maximum rating of 50mA at 12V DC and a minimum rating of 10µA at 1V DC. It features an initial contact resistance of 100mΩ max. and an insulation resistance of 100MΩ min. at 100V DC. The switch is built for durability, offering an operating life of 500,000 cycles.



Mechanically, the SKQJLBA010 has an operating force of 1.57N and a travel of 0.25mm. Its dimensions are 7.5mm x 7.85mm x 7.0mm. The operating temperature range is from -20℃ to +70℃.



This tactile switch is suitable for industrial equipment, healthcare equipment, analysis and test equipment, major home appliances, office equipment, and visual/audio applications. It is designed for use with 1.6mm thick PC boards.

SKQJLBA010 Quick Information

Product Type: Tact Switch
Series: SKQJ Series
Canonical Name: Alps Alpine SKQJLBA010 Tact Switch
Subcategory: Tact Switch

SKQJLBA010 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SKQJLBA010 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

SKQJLBA010 Features

  • Side push operating direction.
  • Sharp feeling type series.
  • 500,000 cycles operating life.
  • 7.5x7.85x7.0mm dimensions.
  • Snap-in mounting type.

SKQJLBA010 Applications

  • Industrial equipment applications.
  • Healthcare equipment use.
  • Analysis and test equipment.
  • Major home appliances.
  • Office equipment integration.

SKQJLBA010 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range?

1V DC to 12V DC.

What is the operating temperature range?

-20°C to +70°C.

What is the operating life of the switch?

500,000 cycles.

What is the operating force required?

1.57 N.

What is the initial contact resistance?

100 mΩ maximum.

What are the dimensions of the switch?

7.5 × 7.85 × 7.0 mm.
