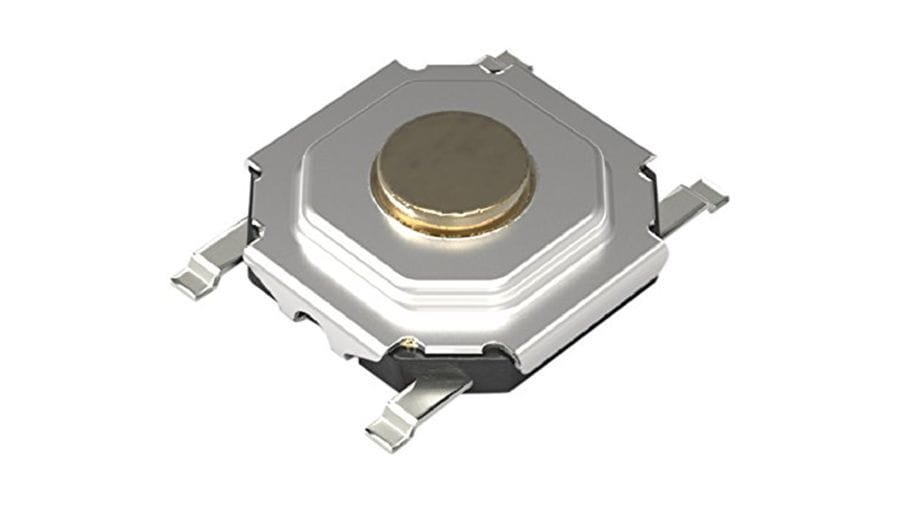

SKQGADE010 The Alps Alpine SKQGADE010 is a tactile switch designed for general electronic equipment. It features a surface mount design with a 1.5mm height and a sharp operating feel.
Mfr Part #:

SKQGADE010

Available from 4 distributors
Mfr Name: Alps Alpine
Alps Alpine
The Alps Alpine SKQGADE010 is a tactile switch designed for general electronic equipment. It features a surface mount design with a 1.5mm height and a sharp operating feel.
✓ Total Stock: 118,020 pcs
$ Price Range: $0.52

SKQGADE010 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
104,000 pcs
On Request
104000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
12,000 pcs
On Request
12000 pcs On Request 1 On Request On Request 19+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SKQGADE010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Contact Resistance
Illumination
Mounting Type
Operating Force
Operating Temperature
Outline
Switch Function
Termination Style
View Similar Products (0)

SKQGADE010 Description

Short technical summary and product information.

The Alps Alpine SKQGADE010 is a tactile switch from the SKQG Series, designed for general electronic equipment applications. This surface mount component offers a compact, thin-profile design with dimensions of 5.2mm x 5.2mm x 1.5mm.



Key electrical specifications include a Single Pole, Single Throw, Normally Open (SPST-NO) circuit, a contact rating of 0.05A at 12VDC, and a maximum contact resistance of 100 mΩ. The switch operates within a temperature range of -40°C to 90°C.



Mechanically, it features a top-actuated, standard actuator type with an operating force of 2.55N (260gf) and a travel distance suitable for tactile feedback. The termination style is Gull Wing, ensuring reliable PWB mounting.



This switch is suitable for various applications including mobile devices, healthcare equipment, and automotive systems.

SKQGADE010 Quick Information

Product Type: Tactile Switch
Series: SKQG
Canonical Name: Alps Alpine SKQGADE010 Tactile Switch
Subcategory: Tactile Switch

SKQGADE010 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SKQGADE010 Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

SKQGADE010 Features

  • Surface mount tactile switch
  • Compact 1.5mm height profile
  • 2.55N operating force
  • SPST-NO circuit configuration
  • 0.05A @ 12VDC contact rating

SKQGADE010 Applications

  • Ideal for mobile devices
  • Suitable for healthcare equipment
  • Used in automotive systems
  • General electronic equipment applications

SKQGADE010 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the SKQGADE010?

The operating temperature range is -40°C to 90°C.

What is the contact rating for the SKQGADE010 tactile switch?

The contact rating is 0.05A at 12VDC.

What is the mounting type of the SKQGADE010?

The mounting type is Surface Mount.

What is the operating force for the SKQGADE010?

The operating force is 2.55N.

What is the circuit configuration of the SKQGADE010?

The circuit configuration is Single Pole, Single Throw, Normally Open (SPST-NO).

What is the height of the SKQGADE010 off the PCB?

The actuator height off the PCB is 1.5mm.
