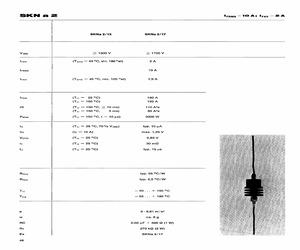

The SEMIKRON SKNA2/17 is a rectifier diode suitable for high voltage applications. It offers a maximum repetitive peak reverse voltage of 1700V and an average forward current of 22A. The diode has a non-repetitive peak forward surge current capability of 320A.
This component is packaged in a DO-1 case with a round shape and metal body material. The terminal finish is TIN/SILVER, and the terminal form is high current cable. It operates as a single phase device with an anode case connection.
Key electrical characteristics include a maximum forward voltage of 1.2V at 10A and a reverse current of 4.0µA at 1300V. The peak forward surge current is rated at 180A at 45°C.
This diode is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. It is also REACH unaffected and lead-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive peak reverse voltage is 1700 V.
The average forward current is 22 A.
The package type is DO-1.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The peak forward surge current is 180 A at 45 °C.
