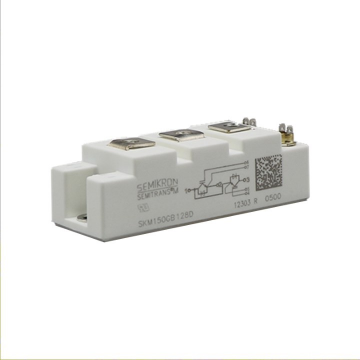

The SEMIKRON SKM150GB123D is an IGBT power module designed and developed by SEMIKRON. This device features N-Channel polarity and a rated current of 150A, making it suitable for use in large mechanical equipment where it plays an important role in the operation.
Key features include input voltage control, a low inductance housing, and extremely low tail current with low temperature dependence. It also boasts high short-circuit capability, self-limited to 6*Icnom, and fast and soft reverse CAL diodes. The module utilizes an isolated copper substrate with DCB direct brazing.
With a maximum operating temperature of 150°C and a minimum of -40°C, the SKM150GB123D is designed for robust performance. It is housed in a D-56 package and requires screw mounting.
This power module incorporates various safety settings to protect its operation. The short-circuit protection setting activates quickly when the input current exceeds a set value, preventing damage from sudden excessive current.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.20 | $3.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 150 A.
The operating temperature range is from -40°C to 150°C.
It has N-Channel polarity.
The SKM150GB123D is supplied in a D-56 package.
The installation method is screw mounting.
