LM431ACZXA
On Semiconductor
The LM431ACZXA from On Semiconductor is an adjustable shunt voltage reference. It offers a wide output voltage range and is suitable for various power management applications.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type |

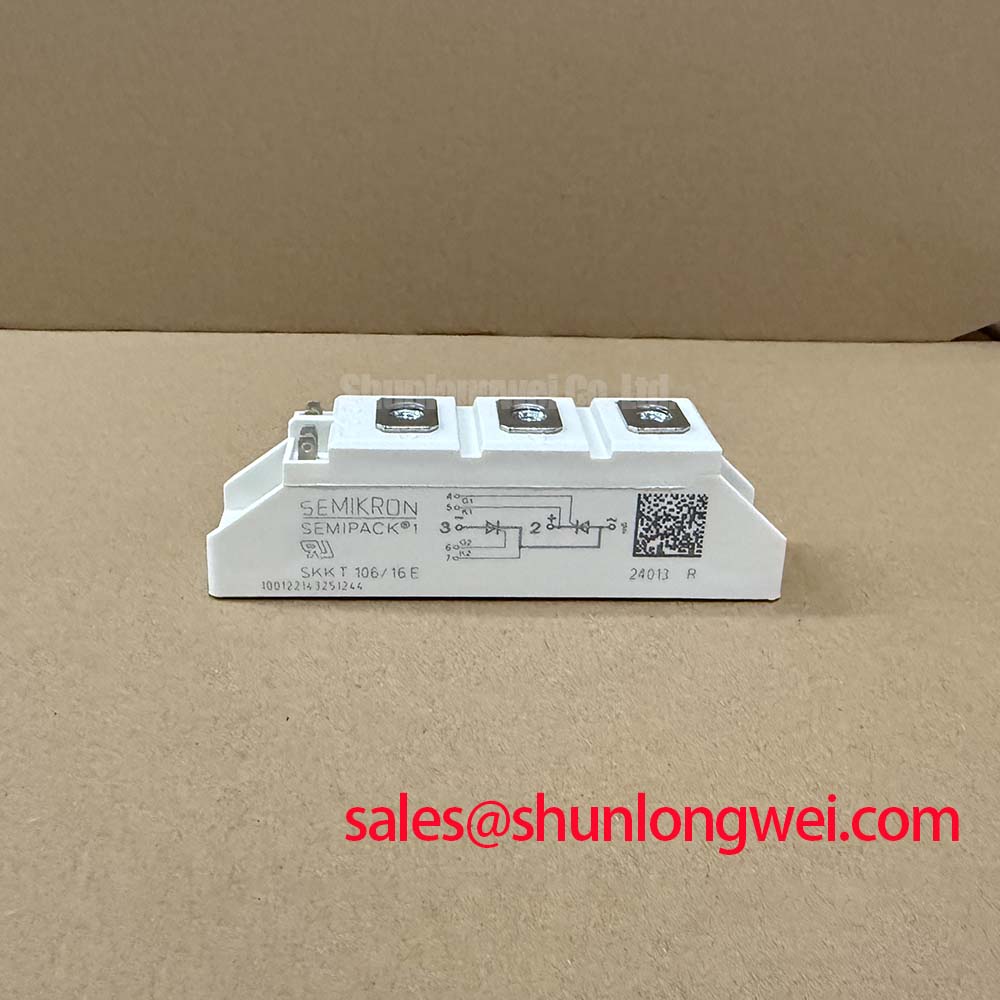

The SEMIKRON SKKT106/16E is a high-performance thyristor module engineered for robust and reliable power control in demanding industrial environments. It features Al₂O₃ ceramic insulation and is designed for durability and thermal stability, ensuring consistent performance through superior thermal management.
Key electrical specifications include a repetitive peak off-state voltage (VDRM/VRRM) of 1600V, an average on-state current (ITAV) of 106A at Tcase = 85°C, and an RMS on-state current (ITRMS) of 180A. The module also handles a surge on-state current (ITSM) of 1900A for 10ms. Thermal characteristics include an operating junction temperature range of -40 to +130°C and a thermal resistance (Rth(j-c)) of 0.24 K/W per thyristor.
This thyristor module is suitable for applications requiring precise control, such as AC motor starters and DC motor drives. Its design addresses the challenge of maintaining operational stability under significant thermal cycling, providing a dependable solution for high-reliability power control.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.79 | $9.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive peak off-state voltage (VDRM/VRRM) is 1600 V.
The average on-state current (ITAV) is 106 A at Tcase = 85°C.
The RMS on-state current (ITRMS) is 180 A.
The operating junction temperature (Tvj) ranges from -40 to +130 °C.
The thermal resistance from junction to case (Rth(j-c)) is 0.24 K/W per thyristor.
The insulation test voltage (Visol) is 3000 V RMS at 50 Hz.
The recommended mounting torque is 5 Nm with a tolerance of ±15%.
