| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
805 pcs
|
805 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Tape Width | |
| Type |

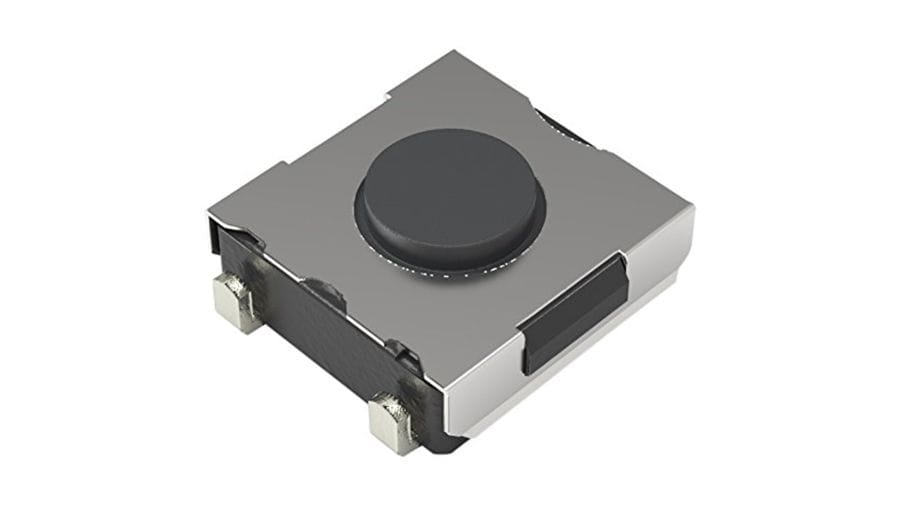

The Alps Alpine SKHUALE010 is a surface mount TACT Switch belonging to the SKHU Series. Designed for top push operation, it offers a sharp feeling type with an operating force of 1.57N and a travel of 0.25mm. This switch has a product height of 2.5mm and an impressive operating life of 300,000 cycles.
Electrical specifications include an initial contact resistance of 100mΩ max. and an insulation resistance of 100MΩ min. The absolute maximum rating is 50mA at 12V DC, with a minimum rating of 10μA at 1V DC. Voltage proof is rated at 250V AC for 1 minute.
Environmental performance includes resistance to cold (-40℃ for 96h), dry heat (90℃ for 96h), and damp heat (60℃, 90-95% RH for 96h). The switch operates within a temperature range of -40℃ to +85℃. It is supplied in tape and reel packaging with a standard package quantity of 3,000 pieces.
Soldering conditions for reflow heating involve a double heating method with infrared heater, with a maximum switch surface temperature not exceeding 260℃. Manual soldering is also supported up to 350℃ for 3 seconds with a 60W iron. Care must be taken to prevent flux penetration.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating force is 1.57N.
The travel distance is 0.25mm.
The operating life is 300,000 cycles.
The operating temperature range is -40℃ to +85℃.
The dimensions are 6.2 x 6.3 x 2.5 mm.
It is supplied in tape and reel packaging with 3,000 pieces per reel.
