| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

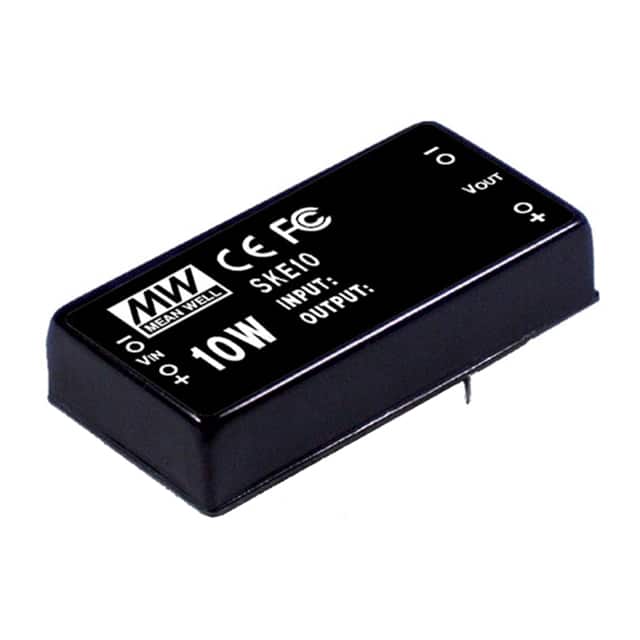

The SKE10A-05 is an isolated DC-DC converter module from Mean Well USA. It delivers a single 5V output at 2A, providing 10W of power with a typical efficiency of 78%. The module features overcurrent (OCP) and short circuit (SCP) protection for reliable operation.
The converter is designed for ITE (commercial) applications and operates over a temperature range of -25°C to 71°C with derating. The nominal input voltage is 9V.
The SKE10A-05 is housed in a 5-DIP module package with through-hole mounting. Dimensions are 50.8mm in length, 25.4mm in width, and 11.3mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.60 | $18.60 |
| 5+ | $18.18 | $18.18 |
| 10+ | $15.45 | $15.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 5V.
The package is a 5-DIP Module with through-hole mounting.
The operating temperature range is -25°C to 71°C with derating.
The SKE10A-05 is listed as RoHS3 compliant, but this has not been verified.
The efficiency is 78%.
It features overcurrent (OCP) and short circuit (SCP) protection.
The module measures 50.8mm x 25.4mm x 11.3mm.
