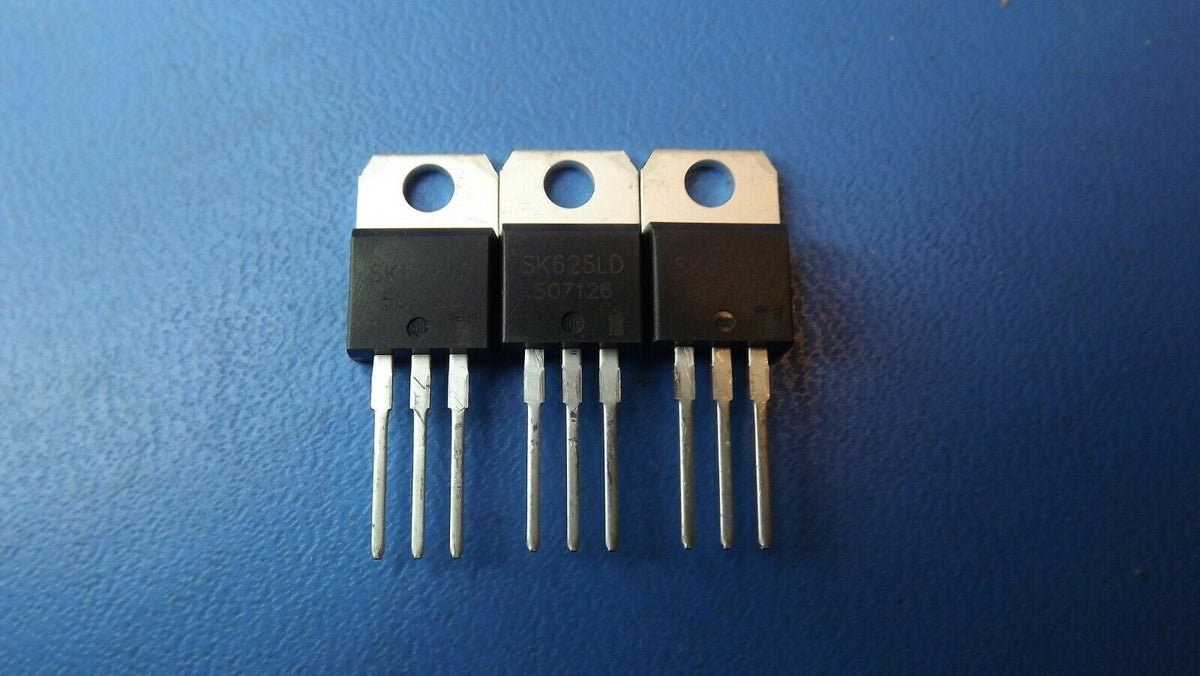

SK625LDTP The Littelfuse SK625LDTP is a Thyristor SCR with a repetitive off-state voltage of 1.6kV and an on-state RMS current of 25A. It is housed in a TO-220AB package.
Mfr Part #:

SK625LDTP

Available from 1 distributors
Mfr Name: Teccor
Teccor
The Littelfuse SK625LDTP is a Thyristor SCR with a repetitive off-state voltage of 1.6kV and an on-state RMS current of 25A. It is housed in a TO-220AB package.
✓ Total Stock: 40 pcs
$ Price Range: $1.27

SK625LDTP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SK625LDTP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Voltage
Lead Style
Mounting Style
SVHC Present
View Similar Products (0)

SK625LDTP Description

Short technical summary and product information.

The Littelfuse SK625LDTP is a Thyristor SCR designed for high-voltage applications. It features a rated repetitive off-state voltage (VDRM) of 1.6 kV and an on-state RMS current (It RMS) of 25 A. The device has a forward voltage (Vf) of 1.8 V and a gate trigger voltage (Vgt) of 1.5 V, with a gate trigger current (Igt) of 35 mA.



This SCR has a maximum holding current (Ih Max) of 120 mA and a non-repetitive on-state current rating of 300 A. It operates within a temperature range of -40°C to +125°C.



The SK625LDTP is packaged in a TO-220-2 case and utilizes a through-hole mounting style. The packaging is supplied in a tube.



This component is suitable for various power control and switching applications where high voltage and current handling are required.

SK625LDTP Quick Information

Product Type: Thyristor SCR
Series: SK625xD
Canonical Name: SK625LDTP Thyristor SCR
Subcategory: SCRs

SK625LDTP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

SK625LDTP Estimated Pricing

Qty Low High
1+ $1.27 $1.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

SK625LDTP Features

  • Rated repetitive off-state voltage of 1.6 kV.
  • On-state RMS current of 25 A.
  • Forward voltage is 1.8 V.
  • Gate trigger voltage is 1.5 V.
  • Operates from -40°C to 125°C.

SK625LDTP Applications

  • Suitable for high-voltage power control.
  • Used in switching applications.
  • Designed for power rectification circuits.
  • Applicable in industrial control systems.

SK625LDTP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type of the SK625LDTP?

TO-220-2 through-hole package.

What is the repetitive off-state voltage rating?

1.6 kV.

What is the on-state RMS current rating?

25 A.

What are the gate trigger voltage and current?

Gate trigger voltage: 1.5 V, gate trigger current: 35 mA.

What is the holding current?

Maximum 120 mA.

What is the operating temperature range?

-40°C to +125°C.

What is the non-repetitive on-state current rating?

300 A.
