| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Function | |
| Industrial Grade | |
| Supplied Contents | |
| Type | |
| Utilized IC |

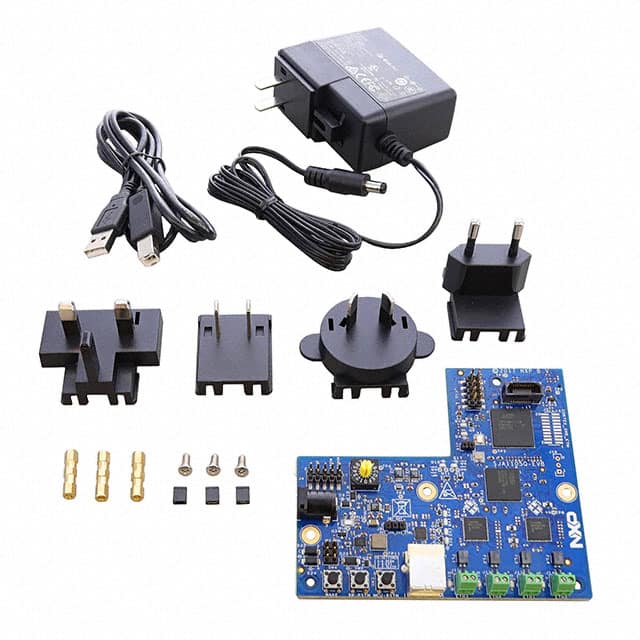

The SJA1105Q-EVB is an evaluation board from NXP Semiconductors for the SJA1105Q Ethernet switch IC. This board provides a complete interface for evaluating the SJA1105Q, which is part of the SJA1105P/Q/R/S family of 5-port store-and-forward Ethernet switches. The switch supports 10/100/1000 Mbit/s on RGMII and SGMII ports, and 10/100 Mbit/s on MII/RMII ports. It comes with IEEE 802.1Q VLAN support, 4096 VLANs, and priority-based QoS. The board includes the necessary components for testing Ethernet switching and AVB features, including IEEE 802.1AS timestamping and credit-based shaping. The SJA1105Q is housed in a LFBGA159 package and operates over -40°C to +105°C. This evaluation board is suitable for automotive and industrial Ethernet applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $311.32 | $311.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is an Ethernet interface evaluation board from NXP Semiconductors.
The NXP SJA1105 Ethernet switch IC.
The supplied contents include board(s).
RoHS3 Compliant (unverified).
