| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Features | |
| Gender | |
| Housing Material | |
| Industry Recognized Mating Diameter | |
| Insulation Resistance | |
| Internal Switch(s) | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Shielding | |
| Signal Lines | |
| Tape & Reel | |
| Termination |

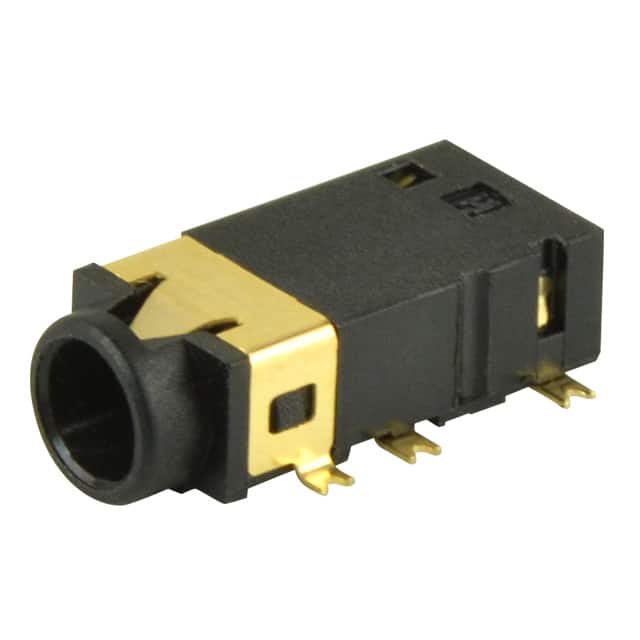

The SJ2-35954D-SMT-TR is a 3.5mm right angle surface mount audio jack manufactured by CUI Devices (now Same Sky). It uses a female phone jack connector with 4 conductors arranged in a TRRS configuration for stereo audio signals. The connector includes two internal switches (tip and ring switches) and a board guide for alignment.
Key electrical specifications include a rated voltage of 12Vdc and a rated current of 1A. Contact resistance is 50mΩ maximum between terminal and mating plug and 30mΩ maximum in a closed circuit. Insulation resistance is at least 100MΩ at 500Vdc, and the device withstands 500Vac for 1 minute.
The jack is designed for surface mount soldering with a right angle orientation, making it suitable for compact PCB layouts. It is packaged in tape and reel (1000 pieces per reel) and rated for reflow soldering up to 260°C. The housing is PA9T with UL94V-0 flammability rating, and the terminals are copper alloy with gold flash over nickel plating.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.55 | $1.55 |
| 10+ | $1.31 | $1.31 |
| 25+ | $1.23 | $1.23 |
| 50+ | $1.17 | $1.17 |
| 100+ | $1.12 | $1.12 |
| 250+ | $1.05 | $1.05 |
| 500+ | $1.00 | $1.00 |
| 1,000+ | $0.95 | $0.95 |
| 2,000+ | $0.90 | $0.90 |
| 3,000+ | $0.88 | $0.88 |
| 5,000+ | $0.85 | $0.85 |
| 7,000+ | $0.83 | $0.83 |
| 10,000+ | $0.81 | $0.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 conductors and 6 contacts.
1 A.
12 Vdc.
Surface Mount, Right Angle.
Yes, it has two switches (tip and ring 1 switches for the D model).
-25°C to 85°C.
