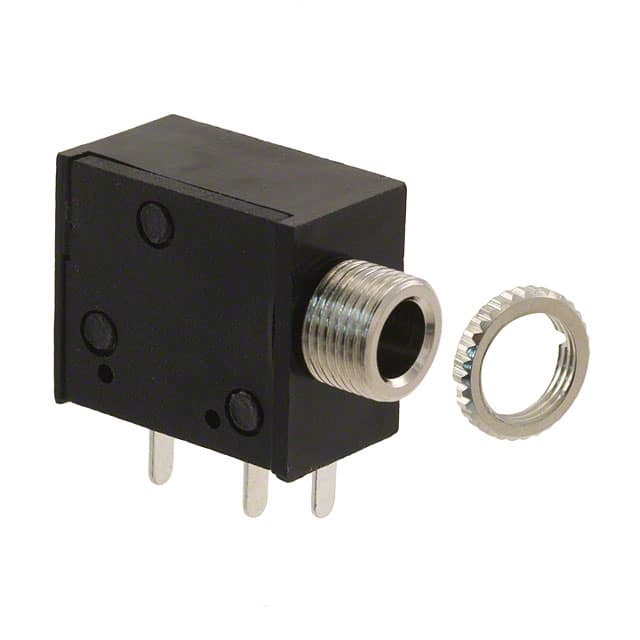

The SJ1-3533 is a 3.5mm stereo phone jack (TRS) from CUI Devices, part of the SJ1-353X series. This female connector accepts a 3.5mm (1/8") mini plug and is designed for panel mount, through-hole, right-angle installation with solder termination. It features 3 conductors (tip, ring, sleeve) and does not contain any internal switches.
Key electrical specifications include a maximum rated input voltage of 12 Vdc and a maximum rated input current of 1 A. Contact resistance is 50 mΩ maximum between terminal and mating plug (30 mΩ in closed circuit), insulation resistance is 100 MΩ minimum at 500 Vdc, and the connector can withstand 500 Vac for 1 minute. Mechanical life is rated at 5,000 cycles minimum, with insertion/withdrawal force between 0.3 and 3 kg.
The connector is unshielded and operates over a temperature range of -25°C to 85°C. The housing and cover are made of PBT with UL94V-0 flammability rating, and the bushing is copper alloy with nickel plating. Mounting hardware and thread lock features are included. The part is RoHS compliant per the datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.13 | $2.13 |
| 10+ | $1.81 | $1.81 |
| 25+ | $1.70 | $1.70 |
| 50+ | $1.61 | $1.61 |
| 100+ | $1.54 | $1.54 |
| 300+ | $1.42 | $1.42 |
| 500+ | $1.37 | $1.37 |
| 1,000+ | $1.31 | $1.31 |
| 2,500+ | $1.22 | $1.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 conductors, 3 contacts.
1 A maximum.
12 Vdc maximum.
Panel mount, through hole, right angle.
-25°C to 85°C.
No, it is unshielded.
50 mΩ maximum between terminal and mating plug; 30 mΩ maximum between terminals in closed circuit.
