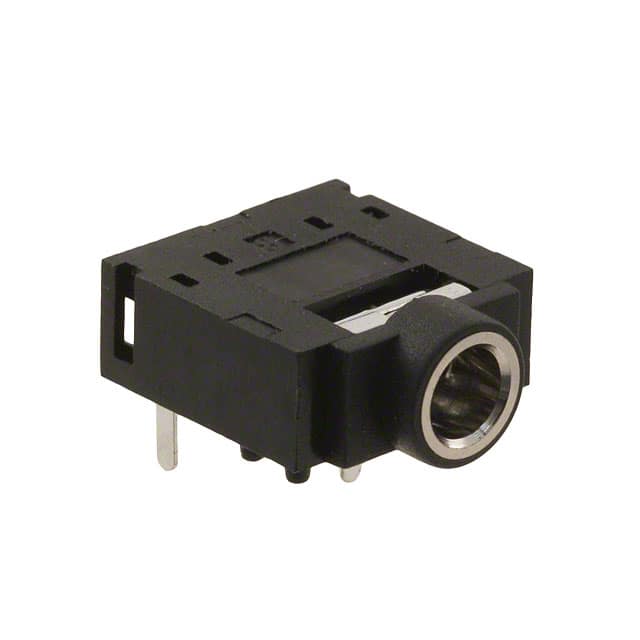

SJ1-3524NG 3.5mm stereo phone jack, female, through hole right angle, with single switch. Rated 12Vdc at 1A.
Mfr Part #:

SJ1-3524NG

Available from 1 distributors
Mfr Name: CUI Devices
CUI Devices
3.5mm stereo phone jack, female, through hole right angle, with single switch. Rated 12Vdc at 1A.
✓ Total Stock: 9 pcs
$ Price Range: $0.69 - $1.20

SJ1-3524NG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SJ1-3524NG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actual Diameter
Connector Type
Gender
Housing Material
Industry Recognized Mating Diameter
Insulation Resistance
Internal Switch(s)
Lead Style
Mounting Type
Number of Positions
Operating Temperature
Shielding
Signal Lines
Tape & Reel
Termination
Termination Style
View Similar Products (0)

SJ1-3524NG Description

Short technical summary and product information.

The SJ1-3524NG is a 3.5mm stereo phone jack from CUI Devices (now Same Sky). It is a female connector with 3 conductors and 4 contacts, designed for stereo (TRS) audio signals. The connector features a single internal switch (tip switch) and is unshielded.



Electrical ratings include 12Vdc at 1A, with contact resistance of 100mΩ maximum between terminal and mating plug, and 50mΩ maximum between terminals in a closed circuit. Insulation resistance is 100MΩ minimum at 500Vdc, and the connector withstands 500Vac for 1 minute.



The housing is made of PBT with UL94V-0 flammability rating. Terminals are copper alloy, stainless steel, and brass with silver over nickel plating. The bushing is brass with nickel plating. Operating temperature range is -25°C to 85°C, with a minimum life of 5,000 cycles. Mounting is through hole, right angle with solder termination.

SJ1-3524NG Quick Information

Product Type: Audio Connector
Series: SJ1-352XNG
Canonical Name: 3.5mm Stereo Phone Jack, Female, Through Hole Right Angle, Single Switch
Subcategory: Audio Connector

SJ1-3524NG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SJ1-3524NG Estimated Pricing

Qty Low High
1+ $1.20 $1.20
10+ $1.02 $1.02
25+ $0.96 $0.96
50+ $0.91 $0.91
140+ $0.85 $0.85
280+ $0.81 $0.81
560+ $0.77 $0.77
1,120+ $0.73 $0.73
2,520+ $0.69 $0.69

Estimated market price range - modelled values for guidance only, not live distributor offers.

SJ1-3524NG Features

  • 3.5mm stereo phone jack female connector.
  • Single internal tip switch included.
  • Rated for 12Vdc at 1A operation.
  • Through hole right angle mounting style.
  • UL94V-0 rated PBT housing material.

SJ1-3524NG Applications

  • Used in portable audio equipment.
  • Suitable for headphone jack applications.
  • Ideal for consumer electronics audio inputs.
  • Works in instrumentation audio interfaces.

SJ1-3524NG FAQs

6 frequently asked questions generated from this part’s specifications.
What is the mating plug diameter for this connector?

The industry recognized mating diameter is 3.50mm (1/8", mini plug).

What is the voltage and current rating?

Rated input voltage is 12Vdc and rated input current is 1A.

What is the operating temperature range?

Operating temperature range is -25°C to 85°C.

Is this connector RoHS compliant?

Yes, it is RoHS3 compliant.

What is the flammability rating of the housing?

The housing material is PBT with UL94V-0 flammability rating.

How many mating cycles is this connector rated for?

Minimum life is 5,000 cycles.
