| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Features | |
| Gender | |
| Industry Recognized Mating Diameter | |
| Insulation Resistance | |
| Internal Switch(s) | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Shielding | |
| Signal Lines | |
| Tape & Reel | |
| Termination | |
| Termination Style |

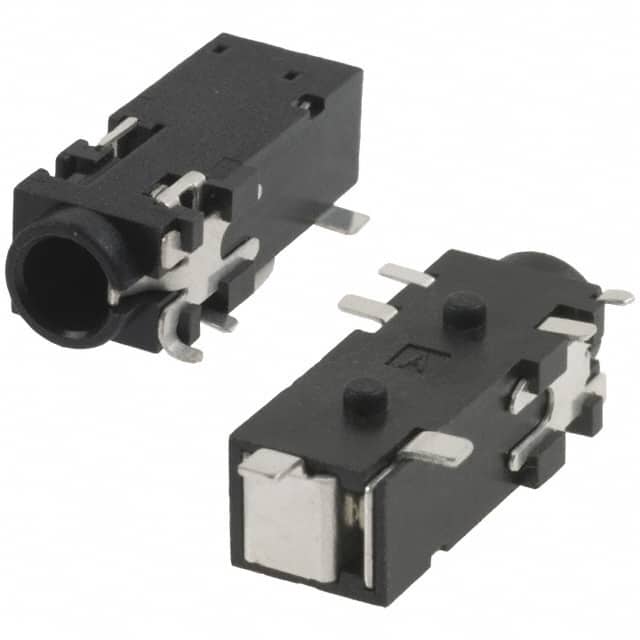

The SJ-43516-SMT-TR is a 3.5mm (0.141") TRRS audio jack from CUI Devices (Same Sky). It features 4 conductors and 6 contacts in a female configuration, with a surface mount, right angle termination for compact PCB designs. The connector includes two internal switches (tip and ring) and a board guide for reliable alignment during assembly.
Electrical ratings include a maximum input voltage of 12Vdc and a maximum input current of 1A. Contact resistance is 50 mΩ between terminal and mating plug, and 30 mΩ between terminals in a closed circuit. Insulation resistance is 100 MΩ minimum at 500Vdc, and the connector can withstand 500Vac for 1 minute.
Mechanical specifications include an insertion/withdrawal force of 0.3 to 3 kg, and a minimum life cycle of 5,000 insertion/withdrawal cycles. The operating temperature ranges from -25°C to 85°C. The housing and cover are made of PA9T with UL94V-0 flammability rating.
Packaging is tape and reel with 500 pieces per 330mm reel. The connector is RoHS compliant per the datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.54 | $1.54 |
| 10+ | $1.31 | $1.31 |
| 25+ | $1.23 | $1.23 |
| 50+ | $1.17 | $1.17 |
| 100+ | $1.11 | $1.11 |
| 250+ | $1.04 | $1.04 |
| 500+ | $0.99 | $0.99 |
| 1,000+ | $0.95 | $0.95 |
| 1,500+ | $0.92 | $0.92 |
| 2,500+ | $0.89 | $0.89 |
| 3,500+ | $0.87 | $0.87 |
| 5,000+ | $0.84 | $0.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 conductors and 6 contacts.
Maximum rated input current is 1 A.
Maximum rated input voltage is 12 Vdc.
Surface mount, right angle with solder termination.
Operating temperature range is -25°C to 85°C.
Minimum 5,000 cycles.
No, it is unshielded.
