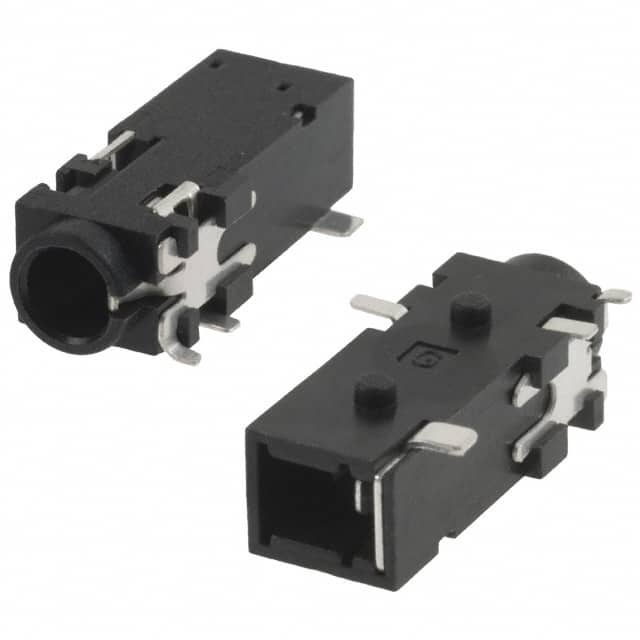

The SJ-43514-SMT-TR is a 3.50mm female audio jack connector from CUI Devices (Same Sky), part of the SJ-4351X-SMT series. It features 4 conductors and 4 contacts arranged in a TRRS (stereo) signal configuration, making it suitable for audio applications requiring separate left, right, ground, and microphone or video channels.
This connector is rated for 12 Vdc input voltage and 1 A current, with a contact resistance of 50 mΩ maximum between terminal and mating plug, and 30 mΩ maximum in a closed circuit. Insulation resistance is 100 MΩ minimum at 500 Vdc, and it withstands 500 Vac for 1 minute. The operating temperature range is -25°C to 85°C, with a mechanical life of 5000 cycles.
The housing is made of PA9T (UL94V-0 rated), and contacts are silver over nickel. It is surface mounted with a right angle orientation and terminated by solder. The part is unshielded and does not contain internal switches. It includes a board guide feature for easier assembly. Packaging is tape and reel with 500 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.52 | $1.52 |
| 10+ | $1.29 | $1.29 |
| 25+ | $1.21 | $1.21 |
| 50+ | $1.15 | $1.15 |
| 100+ | $1.09 | $1.09 |
| 250+ | $1.03 | $1.03 |
| 500+ | $0.98 | $0.98 |
| 1,000+ | $0.93 | $0.93 |
| 1,500+ | $0.90 | $0.90 |
| 2,500+ | $0.87 | $0.87 |
| 3,500+ | $0.85 | $0.85 |
| 5,000+ | $0.83 | $0.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The industry recognized mating diameter is 3.50mm (1/8", mini plug).
It has 4 conductors and 4 contacts (TRRS configuration).
The operating temperature range is -25°C to 85°C.
Rated input voltage is 12 Vdc and rated input current is 1 A.
No, it is unshielded.
Surface mount, right angle.
Contacts are silver over nickel.
