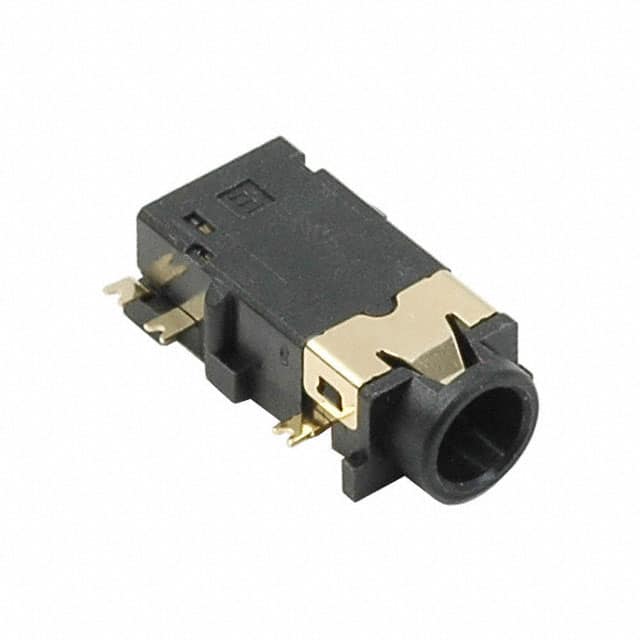

The SJ-43504-SMT-TR is a 3.5mm stereo audio jack connector from CUI Devices (now Same Sky). It features a female phone jack design with 4 conductors and 6 contacts, supporting stereo (TRRS) signal lines. The connector is shielded for EMI protection and includes two internal switches on the tip and ring circuits.
Electrical ratings include a maximum input voltage of 12 Vdc and a maximum input current of 1 A. Contact resistance is 50 mΩ maximum between terminal and mating plug, and 30 mΩ maximum between terminals in a closed circuit. Insulation resistance is 100 MΩ minimum at 500 Vdc, and the connector withstands 500 Vac for 1 minute.
The jack is designed for board cutout, surface mount, right-angle mounting with solder termination. It is packaged in tape and reel (1,000 pieces per reel) and has an operating temperature range of -25°C to 85°C. The housing material is PA9T with a UL94V-0 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.29 | $1.29 |
| 10+ | $1.10 | $1.10 |
| 25+ | $1.03 | $1.03 |
| 50+ | $0.98 | $0.98 |
| 100+ | $0.93 | $0.93 |
| 250+ | $0.87 | $0.87 |
| 500+ | $0.83 | $0.83 |
| 1,000+ | $0.79 | $0.79 |
| 2,000+ | $0.75 | $0.75 |
| 3,000+ | $0.73 | $0.73 |
| 5,000+ | $0.71 | $0.71 |
| 7,000+ | $0.69 | $0.69 |
| 10,000+ | $0.67 | $0.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The industry recognized mating diameter is 3.50mm (1/8 inch, mini plug).
The maximum rated input voltage is 12 Vdc and the maximum rated input current is 1 A.
The operating temperature range is -25°C to 85°C.
It uses board cutout, surface mount, right-angle mounting with solder termination.
Yes, the connector is shielded.
It is rated for a minimum of 5,000 cycles.
The housing material has a UL94V-0 flammability rating.
