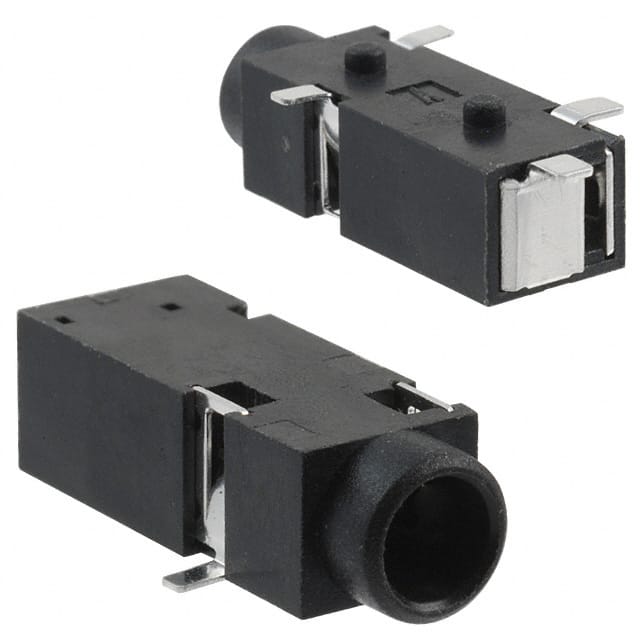

The SJ-3524-SMT-TR is a 3.5mm stereo audio jack from CUI Devices (Same Sky), part of the SJ-352X-SMT series. This female phone jack features 3 conductors and 4 contacts with a stereo TRS signal configuration. It includes a single internal tip switch and a board guide for alignment during assembly.
Rated for 12 Vdc and 1 A maximum, the jack offers contact resistance of 50 mΩ maximum and insulation resistance of 100 MΩ minimum at 500 Vdc. It withstands 500 Vac for 1 minute. The insertion/withdrawal force ranges from 0.3 to 3 kg, and the rated life is 5,000 cycles minimum.
The connector is surface mount, right angle, with solder termination. It is unshielded and operates over -25°C to 85°C. The housing is PA10T rated UL94V-0. Packaging is tape and reel with 1,000 pieces per Ø380 mm reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.89 | $0.89 |
| 10+ | $0.76 | $0.76 |
| 25+ | $0.71 | $0.71 |
| 50+ | $0.67 | $0.67 |
| 100+ | $0.64 | $0.64 |
| 250+ | $0.60 | $0.60 |
| 500+ | $0.57 | $0.57 |
| 1,000+ | $0.55 | $0.55 |
| 2,000+ | $0.52 | $0.52 |
| 3,000+ | $0.50 | $0.50 |
| 5,000+ | $0.49 | $0.49 |
| 7,000+ | $0.48 | $0.48 |
| 10,000+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The industry recognized mating diameter is 3.50mm (1/8", mini plug).
The operating temperature range is -25°C to 85°C.
The maximum rated input voltage is 12 Vdc and the maximum rated input current is 1 A.
The minimum life is 5,000 cycles.
The housing material is PA10T rated UL94V-0.
Yes, the datasheet states RoHS compliance (RoHS3).
