Mfr Part #:

SJ-3506-SMT-TR

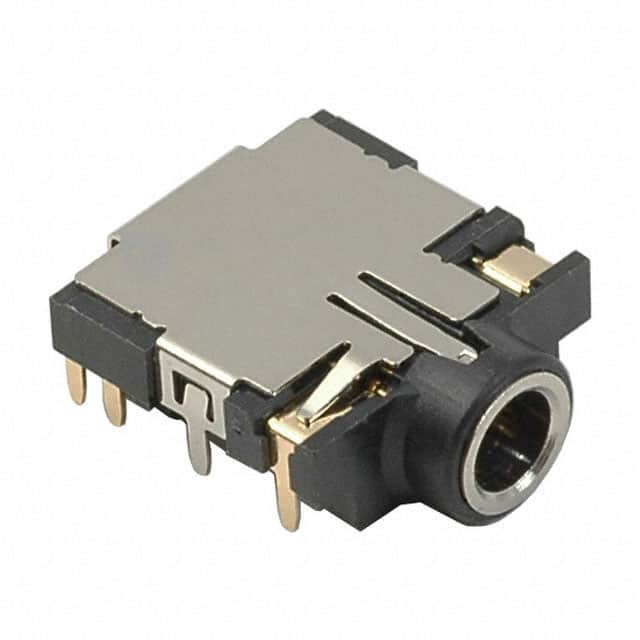

Name: SJ-3506-SMT-TR
Brand: CUI Devices
SKU: SJ-3506-SMT-TR

Mfr Name: CUI Devices

Description:

CONN JACK STEREO 3.5MM SMD R/A

Stock on Request

SJ-3506-SMT-TR Description

Short technical summary and product information.

CONN JACK STEREO 3.5MM SMD R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

CUI Devices

AUDIO JACK, 3.5 MM, RT, 3 CONDUC

Category	Audio Connectors
Manufacturer Name	CUI Devices
Actual Diameter	0.142" (3.60mm)
Connector Type	Phone Jack
Gender	Female
Industry Recognized Mating Diameter	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Internal Switch(s)	Two Switches
Mounting Type	Board Cutout, Surface Mount, Right Angle
Number of Positions	3 Conductors, 6 Contacts
Operating Temperature	-25°C ~ 85°C
Shielding	Shielded
Signal Lines	Stereo (3 Conductor, TRS)
Termination	Solder
