| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,013 pcs
|
3013 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Supplier Device Package | |
| Technology | |
| Vgs(th) (Max) @ Id |

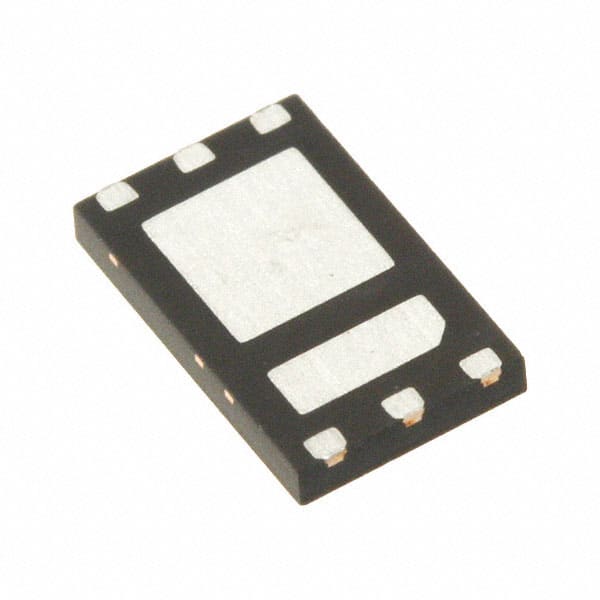

The SIZ700DT-T1-GE3 is a dual N-channel MOSFET array from Vishay, configured as a half bridge. It features a drain-source breakdown voltage of 20V and a continuous drain current rating of 16A at 25°C case temperature. The device offers a typical on-resistance of 8.6mOhm at 10V gate drive and 15A drain current.
This MOSFET array is designed for surface mount assembly in a 6-PowerPair package. It operates over a junction temperature range of -55°C to 150°C. The device is lead-free and halogen-free, and is supplied in tape and reel packaging.
The half-bridge configuration makes this part suitable for DC-DC converters and other power management circuits where two N-channel MOSFETs are needed in a compact footprint. The low on-resistance helps minimize conduction losses in high-current applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum drain-source breakdown voltage is 20V at VGS = 0V and ID = 250µA.
The continuous drain current is 16A at TC = 25°C.
The operating junction and storage temperature range is -55°C to 150°C.
The maximum on-resistance is 8.6mOhm at 15A drain current and 10V gate-source voltage.
It comes in a surface mount 6-PowerPair package.
Yes, the datasheet indicates it is lead (Pb)-free and halogen-free.
