| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
585 pcs
|
585 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Duty Cycle | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

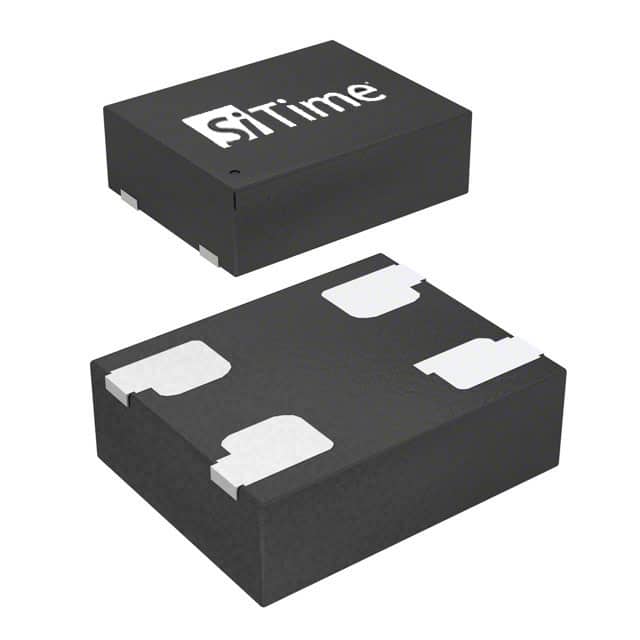

The SiTime SIT8208AC-G1-18E-50.000000Y is a MEMS-based standard oscillator (XO) designed as a drop-in replacement for quartz oscillators. It operates at a nominal frequency of 50 MHz with a frequency stability of ±20ppm over the extended commercial temperature range of -20°C to 70°C.
The device operates from a 1.8V supply voltage (1.71V to 1.89V) and features LVCMOS and LVTTL output logic. Typical current consumption is 31mA (no load, 20MHz condition) with an enable/disable function. The output has a duty cycle of 45% to 55% and rise/fall times of 1.2ns typical (2ns max) with a 15pF load.
Packaged in a compact 4-SMD, no-lead surface-mount package measuring 2.70mm x 2.40mm x 0.80mm, this oscillator is suitable for space-constrained designs. It is Pb-free, RoHS3, and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.42 | $3.42 |
| 10+ | $2.98 | $2.98 |
| 25+ | $2.81 | $2.81 |
| 50+ | $2.70 | $2.70 |
| 100+ | $2.59 | $2.59 |
| 250+ | $2.44 | $2.44 |
| 500+ | $2.34 | $2.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -20°C to 70°C.
The frequency stability is ±20ppm.
The supply voltage is 1.8V nominal, with a range of 1.71V to 1.89V.
It comes in a 4-SMD, no-lead surface-mount package measuring 2.70mm x 2.40mm x 0.80mm.
Yes, it is RoHS3 compliant and Pb-free.
It supports LVCMOS and LVTTL output logic.
Typical current consumption is 31mA (no load, 20MHz condition).
