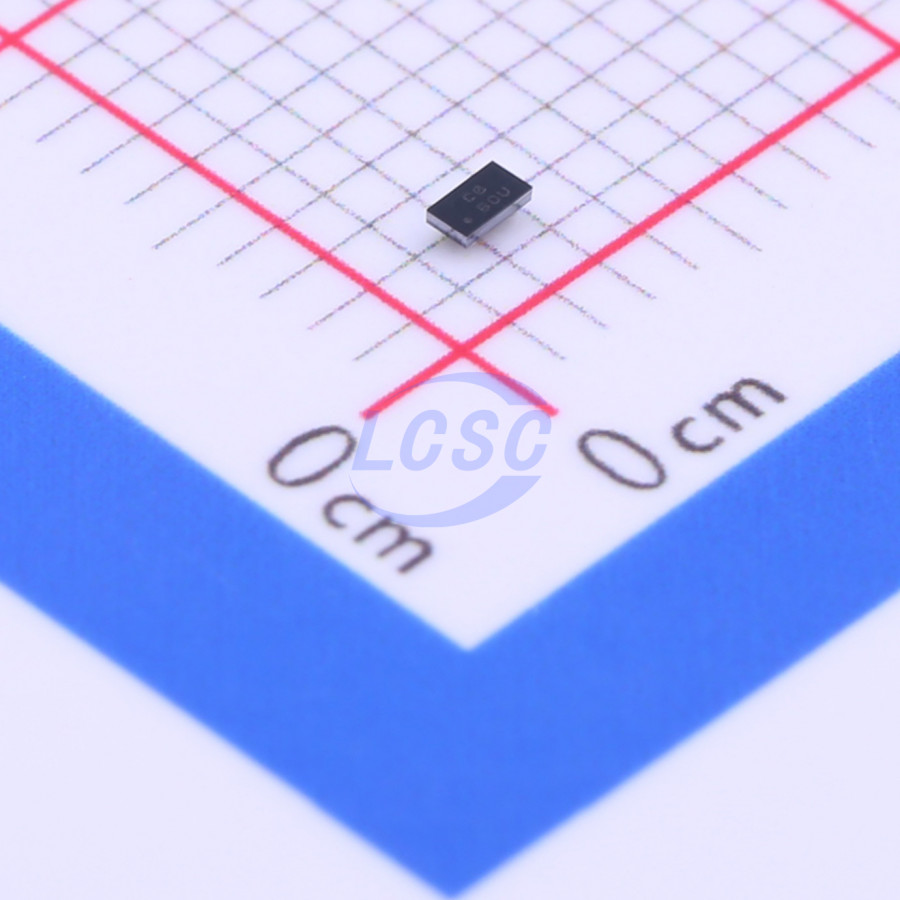

SIT1552AI-JE-DCC-32.768D The SiTime SIT1552AI-JE-DCC-32.768D is a TCXO oscillator featuring a frequency of 32.768 kHz and a stability of ±5ppm. It is designed for surface mount applications.
Mfr Part #:

SIT1552AI-JE-DCC-32.768D

Available from 1 distributors
Mfr Name: SiTime
SiTime
The SiTime SIT1552AI-JE-DCC-32.768D is a TCXO oscillator featuring a frequency of 32.768 kHz and a stability of ±5ppm. It is designed for surface mount applications.
✓ Total Stock: 2,253 pcs
$ Price Range: $1.17

SIT1552AI-JE-DCC-32.768D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,253 pcs
On Request
2253 pcs On Request 1 On Request On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SIT1552AI-JE-DCC-32.768D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Base Resonator
Current
Frequency
Frequency Stability
Height
Length
Mounting Type
Operating Temperature
Output
Type
Voltage
Width
View Similar Products (0)

SIT1552AI-JE-DCC-32.768D Description

Short technical summary and product information.

This SiTime SIT1552AI-JE-DCC-32.768D is a Temperature Compensated Crystal Oscillator (TCXO) with a base resonator type of MEMS. It operates at a frequency of 32.768 kHz with a frequency stability of ±5ppm. The oscillator supports an operating voltage range from 1.5V to 3.63V and provides an LVCMOS output.



Designed for surface mount applications, this TCXO comes in a 4-UFBGA, CSPBGA package with dimensions of 1.54mm x 0.84mm and a height of 0.60mm. The operating temperature range is -40°C to 85°C. Its current consumption is rated at 1.52A.



This component is suitable for applications requiring precise frequency control within a specified temperature range. The MEMS technology offers advantages in terms of size and power consumption compared to traditional crystal oscillators.

SIT1552AI-JE-DCC-32.768D Quick Information

Product Type: TCXO Oscillator
Canonical Name: SiTime SIT1552AI-JE-DCC-32.768D TCXO Oscillator
Subcategory: TCXO

SIT1552AI-JE-DCC-32.768D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SIT1552AI-JE-DCC-32.768D Estimated Pricing

Qty Low High
1+ $1.17 $1.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

SIT1552AI-JE-DCC-32.768D Features

  • TCXO oscillator with MEMS resonator technology.
  • Precise frequency of 32.768 kHz.
  • High frequency stability of ±5ppm.
  • Wide operating voltage from 1.5V to 3.63V.
  • Compact 4-UFBGA, CSPBGA surface mount package.

SIT1552AI-JE-DCC-32.768D Applications

  • Ideal for precise timing applications.
  • Suitable for low-power electronic devices.
  • Used in portable and battery-operated equipment.
  • Provides stable clock signals in varying temperatures.

SIT1552AI-JE-DCC-32.768D FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the SIT1552AI-JE-DCC-32.768D?

The operating voltage range is 1.5V to 3.63V.

What is the package type for this TCXO?

The package is 4-UFBGA or CSPBGA, surface mount.

What is the operating temperature range?

-40°C to 85°C.

What is the frequency stability of this oscillator?

±5ppm.

What is the output type?

LVCMOS.

What is the base resonator technology?

MEMS.

What is the frequency of this TCXO?

32.768kHz.
