Mfr Part #:

SIT1044T/3

Mfr Name: Hunan Silicon Internet of Things Technology Co. Ltd.

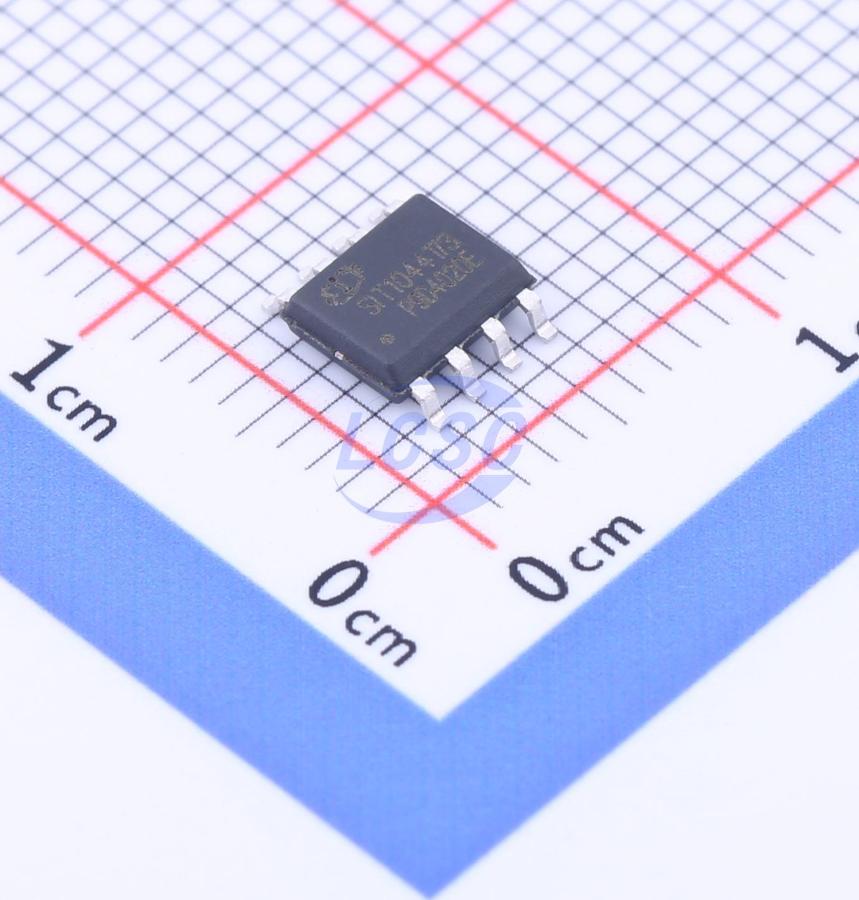

The SIT1044T/3 from SIT is a high-performance CAN FD transceiver chip. It supports a 5Mbps flexible data rate and offers +/-40V bus voltage tolerance.

✓ Total Stock: 3,101 pcs

SIT1044T/3 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	3,101 pcs On Request	3101 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SIT1044T/3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Hunan Silicon Internet of Things Technology Co. Ltd.
Data Rate	5Mbps
ESD Protection	8kV HBM
Mounting Type	Surface Mount
Operating Temperature	-40°C to 125°C
Package / Case	SOP8, DFN3*3-8
SVHC Present	Not Present

View Similar Products (0)

SIT1044T/3 Description

Short technical summary and product information.

The SIT1044T/3 is a high-performance CAN FD transceiver chip developed by SIT, designed for applications requiring communication between CAN protocol controllers and physical buses. It is suitable for use in vehicles such as trucks, buses, and cars, as well as industrial control systems.

Key features include a bus voltage tolerance of +/-40V, HBM ESD protection up to 8KV, and support for a 5Mbps flexible data rate (CAN FD). The chip meets or exceeds the ISO 11898 standard. It is available in SOP8 and DFN3*3-8 packages, offering small form factor options.

The SIT1044T/3 operates with I/O voltages supporting 3.3V and 5V MCUs. It includes features such as undervoltage protection on VCC and VIO power pins, driver (TXD) dominant timeout, standby bus (BUS) dominant timeout, and a low-power standby mode with wake-up capability. The device has undergone high and low temperature aging tests from -40°C to 125°C, making it suitable for industrial and automotive applications. It also boasts high electromagnetic interference immunity, ensuring that unpowered nodes do not interfere with the bus.

This transceiver is part of SIT's comprehensive series of CAN FD, CAN, and LIN transceiver models, positioning SIT as a domestic analog IC manufacturer with a full range of offerings for industrial and automotive sectors.

SIT1044T/3 Quick Information

Product Type: CAN FD Transceiver

Canonical Name: SIT1044T/3 CAN FD Transceiver

Subcategory: CAN FD

SIT1044T/3 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SIT1044T/3 Features

Supports 5Mbps CAN FD flexible data rate.
+/-40V bus voltage tolerance.
8KV HBM ESD protection.
Operates from -40°C to 125°C.
Available in SOP8 and DFN3*3-8 packages.

SIT1044T/3 Applications

Used in automotive control systems.
Suitable for industrial control.
Applicable to energy storage BMS.
Supports electric power systems.

SIT1044T/3 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the data rate of the SIT1044T/3?

The SIT1044T/3 supports a flexible data rate of 5Mbps (CAN FD).

What is the bus voltage tolerance for the SIT1044T/3?

The bus voltage tolerance for the SIT1044T/3 is -40V to 40V.

What is the operating temperature range of the SIT1044T/3?

The SIT1044T/3 operates in a temperature range of -40°C to 125°C.

What I/O voltages does the SIT1044T/3 support?

The SIT1044T/3 supports I/O voltages of 3.3V and 5V.

What ESD protection is provided by the SIT1044T/3?

The SIT1044T/3 provides HBM ESD protection up to 8KV.

What packages are available for the SIT1044T/3?

The SIT1044T/3 is available in SOP8 and DFN3*3-8 packages.
