| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19,020 pcs
|
19020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs(th) (Max) @ Id |

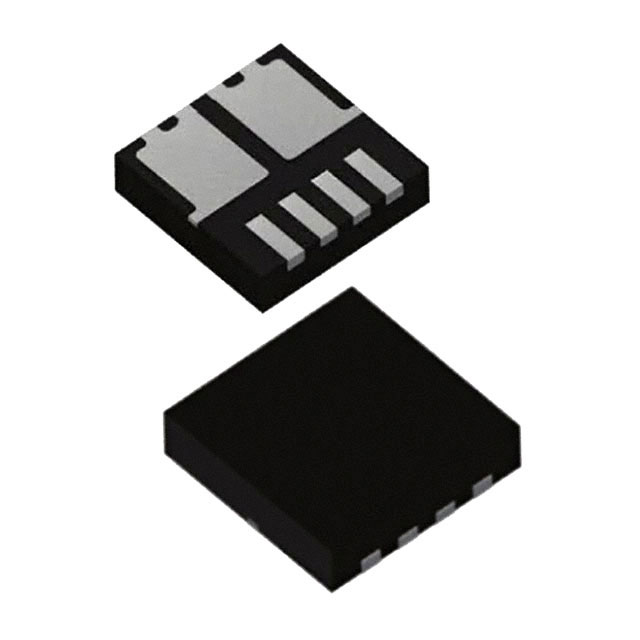

The Vishay Dale SISF00DN-T1-GE3 is a Common Drain Dual N-Channel MOSFET designed for applications requiring efficient power handling. It features a 30V drain-source voltage and a continuous drain current capability of up to 60A at 25°C case temperature.
This MOSFET boasts a very low source-to-source on-resistance, with a maximum of 5mOhm at 10A and 10V Vgs. It also offers a typical gate charge of 16.1nC. The device is built using TrenchFET Gen IV power MOSFET technology and is housed in a compact, thermally enhanced PowerPAK® 1212-8SCD dual package.
Key electrical characteristics include an input capacitance of 2700pF at 15V and a gate threshold voltage of 2.1V at 250µA. The operating temperature range is from -55°C to 150°C.
Designed for applications such as battery management and load switching, this MOSFET optimizes circuit layout for bi-directional current flow. It is surface mounted and suitable for various power management tasks.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage for the SISF00DN-T1-GE3 is 30V.
The maximum continuous drain current is 60A at 25°C case temperature.
The Rds On is a maximum of 5mOhm at 10A and 10V Vgs.
The operating temperature range is -55°C to 150°C.
The SISF00DN-T1-GE3 is in a PowerPAK® 1212-8SCD Dual package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1.
