| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
226,000 pcs
|
226000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
37,020 pcs
|
37020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
191 pcs
|
191 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The Vishay Dale SiS413DN-T1-GE3 is a P-Channel Power MOSFET designed for various power management applications. It offers a drain-source voltage (Vds) of 30V and a continuous drain current (Id) of 18A at 25°C case temperature.
Key electrical characteristics include a maximum on-resistance (Rds On) of 9.4mOhm when driven at 10V Vgs and 15A Id. The gate charge (Qg) is typically 35.4nC at 10V Vgs. The device operates within a temperature range of -55°C to 150°C (TJ).

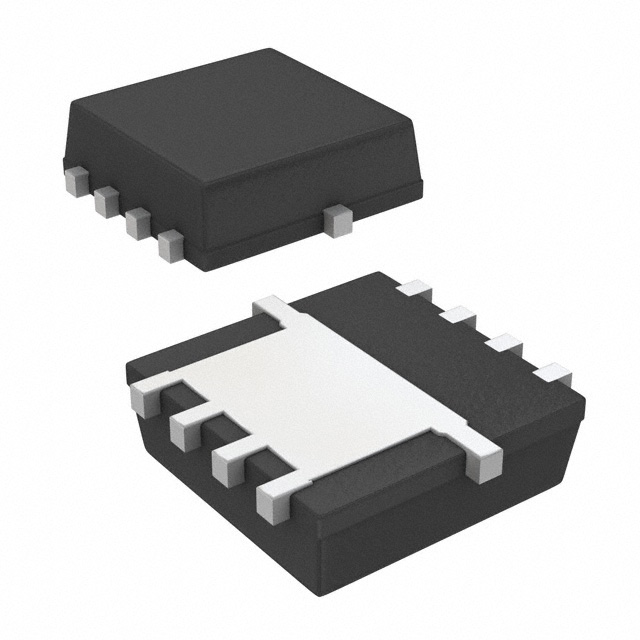

This MOSFET is housed in a PowerPAK® 1212-8 surface-mount package. It is suitable for applications such as adaptor switches, load switches, and power management in mobile computing.
The SiS413DN-T1-GE3 is manufactured using TrenchFET® technology and is 100% Rg and UIS tested. It is available in a lead (Pb)-free and halogen-free configuration.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 30V.
The maximum continuous drain current is 18A at a case temperature of 25°C.
The maximum on-resistance is 9.4mOhm at Vgs=10V and Id=15A, and 13.2mOhm at Vgs=4.5V.
The operating junction temperature range is -55°C to 150°C.
It is available in a PowerPAK 1212-8 surface-mount package.
The maximum gate threshold voltage is 2.5V at a drain current of 250µA.
The maximum power dissipation is 52W at a case temperature of 25°C and 3.7W at an ambient temperature of 25°C.
