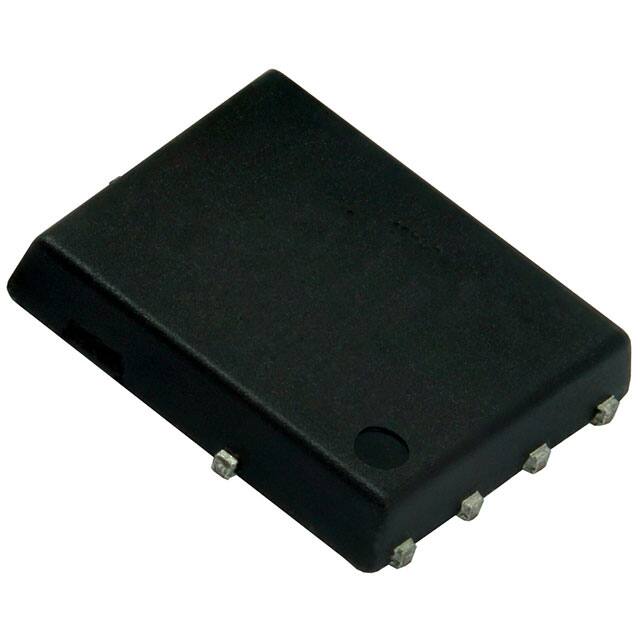

The Vishay Dale SIR580DP-T1-RE3 is an N-Channel MOSFET designed for various power applications. It offers a drain-source voltage (Vds) of 80V and a high continuous drain current capability of up to 146A at 25°C case temperature.
Key electrical characteristics include a low on-resistance (Rds On) of 2.7 mOhm at 20A and 10V Vgs, and a gate charge (Qg) of 76 nC maximum at 10V Vgs. The MOSFET operates within a temperature range of -55°C to 150°C.
This device is housed in a surface-mount PowerPAK SO-8 package, suitable for applications requiring efficient power management. Its features include TrenchFET Gen V technology, low RDS x Qg figure-of-merit, and 100% Rg and UIS tested.
Applications include synchronous rectification, DC/DC converters, power supplies, motor drive control, and battery management.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage (Vds) is 80V.
The maximum continuous drain current is 146A at 25°C case temperature and 35.8A at 25°C ambient temperature.
The Rds On is a maximum of 2.7 mOhm at 20A drain current and 10V gate-source voltage.
The package type is PowerPAK SO-8, designed for surface mounting.
The operating junction and storage temperature range is -55°C to 150°C.
