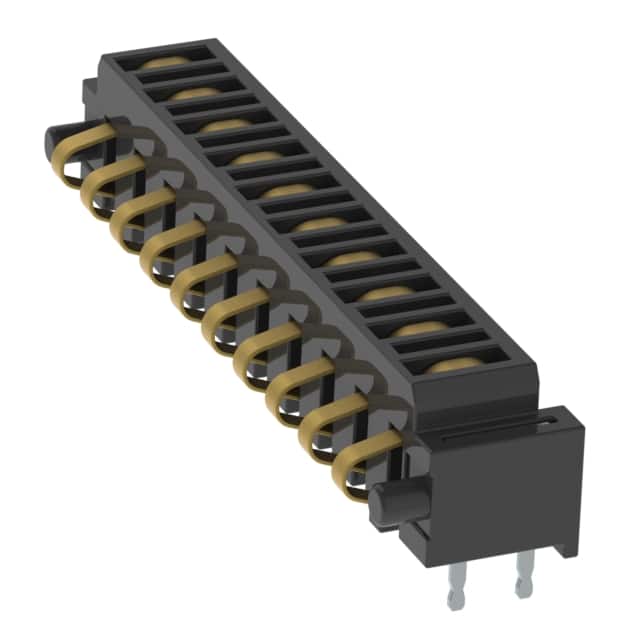

SIR1-10-L-S-A Samtec SIR1-10-L-S-A is a compression contact, non-gendered spring loaded connector with 10 positions in a single row. It features a 2.54mm pitch, gold contact finish, and surface mount right angle mounting.
Mfr Part #:

SIR1-10-L-S-A

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec SIR1-10-L-S-A is a compression contact, non-gendered spring loaded connector with 10 positions in a single row. It features a 2.54mm pitch, gold contact finish, and surface mount right angle mounting.
✓ Total Stock: 5 pcs
$ Price Range: $2.82 - $5.22

SIR1-10-L-S-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SIR1-10-L-S-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Lead Spacing
Material
Mounting Type
Number of Contacts
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

SIR1-10-L-S-A Description

Short technical summary and product information.

The Samtec SIR1-10-L-S-A is a spring loaded connector designed for applications requiring reliable compression contacts. It features 10 contacts arranged in a single row with a 2.54mm pitch. The surface mount right angle design allows for compact board layouts and efficient use of PCB space. Gold plating on phosphor bronze contacts ensures excellent conductivity and corrosion resistance. The connector is RoHS3 compliant and has an MSL rating of 1 (unlimited), indicating no moisture sensitivity. This non-gendered connector offers flexibility in mating configurations.

SIR1-10-L-S-A Quick Information

Product Type: Spring Loaded Connector
Series: SIR1
Canonical Name: Samtec SIR1-10-L-S-A Spring Loaded Connector, 10 Position, Right Angle SMD
Subcategory: Spring Loaded

SIR1-10-L-S-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SIR1-10-L-S-A Estimated Pricing

Qty Low High
1+ $5.22 $5.22
19+ $5.21 $5.21
57+ $4.17 $4.17
114+ $3.91 $3.91
513+ $3.47 $3.47
1,007+ $3.15 $3.15
2,508+ $2.82 $2.82

Estimated market price range - modelled values for guidance only, not live distributor offers.

SIR1-10-L-S-A Features

  • 10 compression contacts in single row.
  • 2.54mm pitch for standard spacing.
  • Surface mount right angle design.
  • Gold-plated phosphor bronze contacts.
  • RoHS3 compliant and MSL level 1.

SIR1-10-L-S-A Applications

  • Ideal for board-to-board interconnections.
  • Used in compact electronic assemblies.
  • Suitable for high-reliability connections.

SIR1-10-L-S-A FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the SIR1-10-L-S-A have?

10 positions.

What is the pitch of the SIR1-10-L-S-A?

2.54mm (0.100")

What is the mounting type?

Surface Mount, Right Angle.

How many rows does it have?

1 row.

What is the contact finish?

Gold, 10.0µin (0.25µm) thickness.

What is the contact material?

Phosphor Bronze.

What type of connector is it?

Compression Contact, Non-Gendered.
