SIP32434ADN-T1E4 The Vishay Dale SIP32434ADN-T1E4 is a single-channel eFuse designed for power protection. It offers a wide operating voltage range and programmable features for flexible integration.
Mfr Part #:

SIP32434ADN-T1E4

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale SIP32434ADN-T1E4 is a single-channel eFuse designed for power protection. It offers a wide operating voltage range and programmable features for flexible integration.
✓ Total Stock: 20 pcs
$ Price Range: $0.32

SIP32434ADN-T1E4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Akira Global ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SIP32434ADN-T1E4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Features
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
SVHC Present
Supplier Device Package
Supplier Package
Switch Type
Tape & Reel
Voltage
View Similar Products (0)

SIP32434ADN-T1E4 Description

Short technical summary and product information.

The Vishay Dale SIP32434ADN-T1E4 is a single-channel eFuse that provides comprehensive protection for both power sources and downstream circuitry. It safeguards against excessive inrush currents, overloads, short circuits, and overvoltage faults.



This eFuse operates from 2.8 V to 22 V and features a typical switch resistance of 33 mΩ. Key programmable features include adjustable overvoltage protection (OVP), adjustable undervoltage lockout (UVLO), and a programmable current limit ranging from 0.5 A to 6 A with ± 7% accuracy. It also includes over-temperature protection and a power good indicator (PGD).

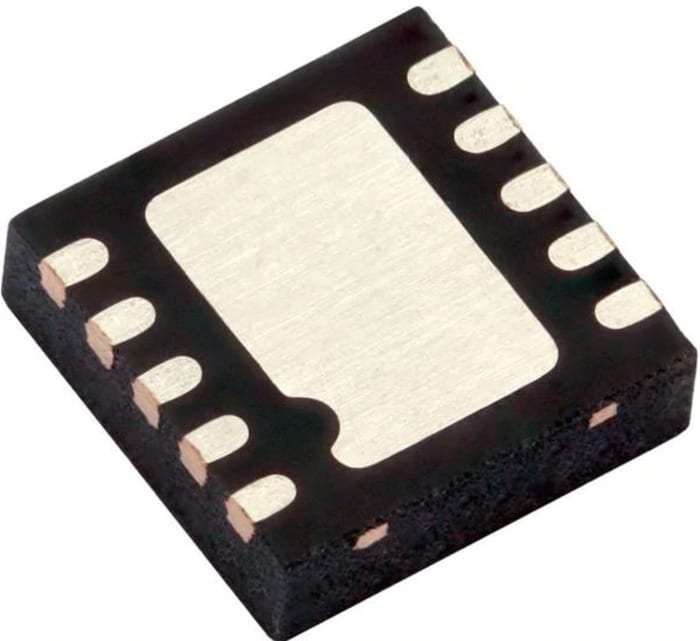

The device is housed in a compact 10-DFN (3x3 mm) package, suitable for surface mounting. Its design simplifies power management systems with minimal external components, making it ideal for industrial, IoT, medical, and networking applications.



With features like fast short circuit protection response and programmable turn-on slew rate, the SIP32434ADN-T1E4 offers enhanced controllability and reliability for various electronic designs.

SIP32434ADN-T1E4 Quick Information

Product Type: eFuse
Series: SiP32434
Canonical Name: Vishay Dale SIP32434ADN-T1E4 Single Channel eFuse
Subcategory: eFuse

SIP32434ADN-T1E4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SIP32434ADN-T1E4 Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

SIP32434ADN-T1E4 Features

  • Operates from 2.8 V to 22 V.
  • 6 A maximum output current.
  • 33 mΩ typical switch resistance.
  • Programmable current limit and OVP.
  • Compact 10-DFN (3x3 mm) package.

SIP32434ADN-T1E4 Applications

  • Protects power sources and circuitry.
  • Suitable for industrial applications.
  • Used in IoT and smart home devices.
  • Applicable to medical equipment.
  • Supports network and telecom systems.

SIP32434ADN-T1E4 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the SIP32434ADN-T1E4?

2.8 V to 22 V.

What is the adjustable current limit range?

0.5 A to 6 A.

What is the typical on-resistance?

33 mΩ.

What is the package type?

10-VFDFN Exposed Pad (10-DFN, 3x3mm).

Does it have overvoltage protection?

Yes, adjustable OVP with a fixed 24 V option at VIN.

What is the output configuration?

High-side, N-Channel.

What fault protections are included?

Current limiting, over temperature, over voltage, short circuit, and UVLO.
