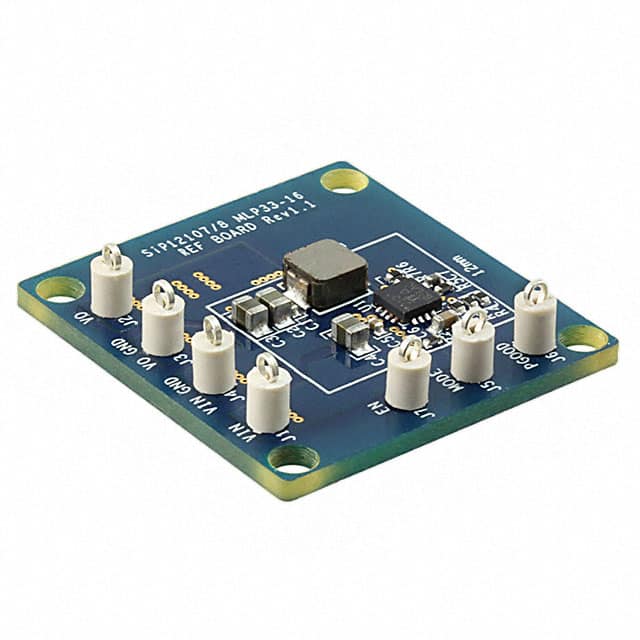

The Vishay SIP12107DB is a fully populated evaluation board designed for the SiP12107 synchronous buck regulator IC. It enables engineers to evaluate the performance of the microBUCK regulator in a compact, scalable solution.
The board operates with an input voltage range of 2.8V to 5.5V and delivers up to 3A output current. The output voltage is adjustable from 0.6V to 4.6V, with a switching frequency programmable between 200kHz and 4MHz. Peak efficiency reaches 95%, making it suitable for power-sensitive applications.
Typical applications include point-of-load power supplies, embedded systems, networking equipment, and consumer electronics such as LCD TVs and set-top boxes. The board is fully populated and ready for use, with the SiP12107 IC integrated.
| Qty | Low | High |
|---|---|---|
| 1+ | $88.55 | $88.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.8V to 5.5V.
The output current is 3A.
The output voltage range is 0.6V to 4.6V.
The switching frequency is adjustable from 200kHz to 4MHz.
Peak efficiency is 95%.
The board uses a buck (step-down) topology.
The board is marked as RoHS3 compliant, but this is unverified with low confidence.
