| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
640 pcs
|
640 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Operating Temperature |

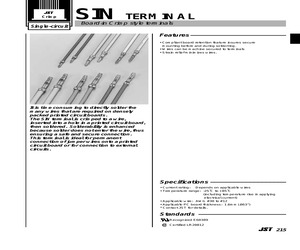

The JST SIN-01T-1.8 is a board-in crimp style terminal designed for secure and permanent connections onto printed circuit boards. This terminal is ideal for applications where direct soldering of multiple wires to a PCB is time-consuming or impractical. The SIN terminal is crimped to a wire, inserted into a hole in the PCB, and then soldered, ensuring a safe and secure connection. Solderability is enhanced as solder does not enter the wire.
Key specifications include an operating temperature range of -25°C to +85°C, suitable for a variety of environmental conditions. It is designed to accommodate wire gauges from AWG #30 to #12, offering flexibility in wire selection. The terminal is compatible with PC boards having a thickness of 1.6mm (0.063"). The compliant board retention feature ensures secure mounting before and during the soldering process, minimizing wire strain.
This terminal is recognized under UL E60389 and certified under CSA LR20812, indicating compliance with relevant safety standards. The material is brass with copper-undercoated, tin-plated finish for durability and conductivity. The standard package quantity is 7,000 units per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -25°C to +85°C.
The terminal is applicable for wire gauges from AWG #30 to #12.
The terminal is compatible with PC boards that are 1.6mm (0.063") thick.
The standard package quantity is 7,000 units.
