| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,450 pcs
|
7450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Antenna Type | |
| Automotive Grade | |
| Current | |
| Data Rate | |
| Frequency | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Voltage |

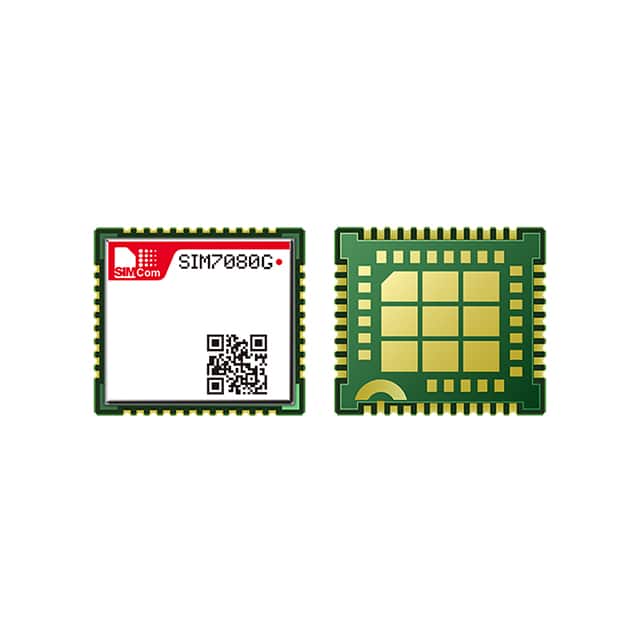

The SIM7080G is a Multi-Band CAT-M and NB-IoT module solution in an SMT type package from SIMCom Wireless Solutions Limited. It offers strong extension capability with rich interfaces including UART, GPIO, PCM, SPI, and I2C. This module is designed for applications requiring low latency, low throughput data communication in various radio propagation conditions.
Key features include support for Power Saving Mode (PSM) and Extended Discontinuous Reception (eDRX), which can extend battery life up to 10 years. The SIM7080G operates within a supply voltage range of 2.7V to 4.8V and has an operating temperature range of -40°C to 85°C. It supports data transfer rates up to 1.119Mbps for Cat-M and 158.5Kbps for Cat-NB.
The module is ideal for M2M applications such as metering, asset tracking, remote monitoring, and E-health. Its compact size and abundant interfaces make it flexible for integration into customer applications. The package is compatible with the SIM868.
Mounting is via surface mount technology. The module supports various protocols including TCP/UDP, HTTP/HTTPS, FTP, TLS/DTLS, PING, LWM2M, COAP, and MQTT. Firmware upgrades can be performed via USB or FOTA.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SIM7080G module supports Cat-M and NB-IoT communication modes.
The operating voltage range for the SIM7080G module is 2.7V to 4.8V.
The SIM7080G module operates within a temperature range of -40°C to 85°C.
The SIM7080G module is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the SIM7080G module is 1 Unlimited.
The SIM7080G module features ADC, GPIO, I²C, SPI, PCM, UART, and USB interfaces.
For Cat-M, the data transfer rates are 589 Kbps (DL) and 1119 Kbps (UL). For Cat-NB, the rates are 127 Kbps (DL) and 158.5 Kbps (UL).
