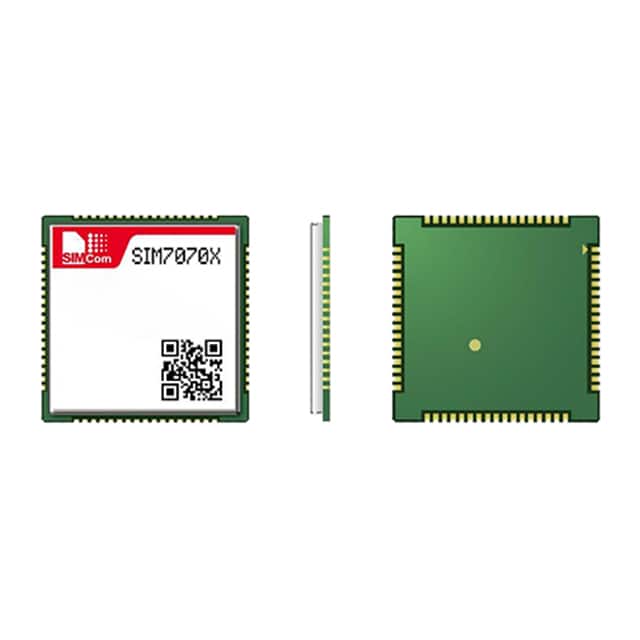

SIM7070G The SIM7070G is a Mini PCIe module from SIMCom Wireless Solutions Limited supporting LTE Cat-M1, NB-IoT, EGPRS, and GNSS. It offers data transfer speeds up to 1.119Mbps.
Mfr Part #:

SIM7070G

Available from 1 distributors
Mfr Name: SIMCom Wireless Solutions Limited
SIMCom Wireless Solutions Limited
The SIM7070G is a Mini PCIe module from SIMCom Wireless Solutions Limited supporting LTE Cat-M1, NB-IoT, EGPRS, and GNSS. It offers data transfer speeds up to 1.119Mbps.
✓ Total Stock: 1,000 pcs
$ Price Range: $6.06

SIM7070G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SIM7070G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Antenna Type
Data Rate
Dimensions
Form Factor
Frequency
Mounting Type
Operating Temperature
Power
Protocol
RF Family
Serial Interfaces
Tape & Reel
Voltage
View Similar Products (0)

SIM7070G Description

Short technical summary and product information.

The SIM7070G by SIMCom Wireless Solutions Limited is an LTE Cat-M1 and NB-IoT module solution in a Mini PCIe form factor. It supports LTE-FDD, TDD-LTE, and Quad-Band GPRS/EGPRS, providing data transfer speeds up to 1119kbps.



This module is designed for applications requiring low latency and medium throughput data communication. It features strong extension capabilities with rich interfaces including UART and USB 2.0, offering flexibility and ease of integration. The operating temperature range is -40°C to +85°C, with a supply voltage range of 3.3V to 4.3V (typically 3.8V).



The SIM7070G is well-suited for M2M applications such as metering, telematics, asset tracking, remote monitoring, E-health, and mobile POS terminals. Its compact Mini PCIe form factor (50.8 x 30 x 4.9 mm) and surface mount capability make it adaptable for various designs.



Key protocols supported include TCP/UDP, HTTP/HTTPS, FTP, TLS/DTLS, PING, LWM2M, COAP, and MQTT. Firmware can be upgraded via USB or FOTA. The module requires a 1.8V SIM card and does not include an antenna.

SIM7070G Quick Information

Product Type: RF Transceiver Module
Canonical Name: SIM7070G Mini PCIe LTE Cat-M1/NB-IoT Module
Subcategory: LPWA Module

SIM7070G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SIM7070G Estimated Pricing

Qty Low High
1+ $6.06 $6.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

SIM7070G Features

  • LTE Cat-M1 and NB-IoT module.
  • Mini PCIe form factor for integration.
  • Supports EGPRS and GNSS connectivity.
  • Data rates up to 1.119Mbps.
  • Wide operating temperature range.

SIM7070G Applications

  • Ideal for M2M applications.
  • Suitable for asset tracking.
  • Used in remote monitoring systems.
  • Applicable for E-health devices.
  • Supports mobile POS terminals.

SIM7070G FAQs

7 frequently asked questions generated from this part’s specifications.
What are the supported frequency bands for the SIM7070G module?

The SIM7070G module supports frequency bands including 850MHz, 900MHz, 1.8GHz, and 1.9GHz.

What is the maximum data transfer rate of the SIM7070G module?

The SIM7070G module supports a maximum data transfer rate of 1.119Mbps.

What protocols does the SIM7070G module support?

The SIM7070G module supports protocols such as Cat-M, Cat-NB, GNSS, and GSM.

What is the operating voltage range for the SIM7070G module?

The operating voltage range for the SIM7070G module is 3V to 4.6V.

What is the operating temperature range of the SIM7070G module?

The SIM7070G module operates within a temperature range of -40°C to 85°C.

What serial interfaces are available on the SIM7070G module?

The SIM7070G module features serial interfaces including ADC, I²C, I²S, PCM, UART, and USB.

What is the form factor of the SIM7070G module?

The SIM7070G module has a Mini PCIe form factor.
