| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,388 pcs
|
9388 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Dimensions | |
| Mounting Type | |
| Operating Temperature | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Voltage | |
| Weight |

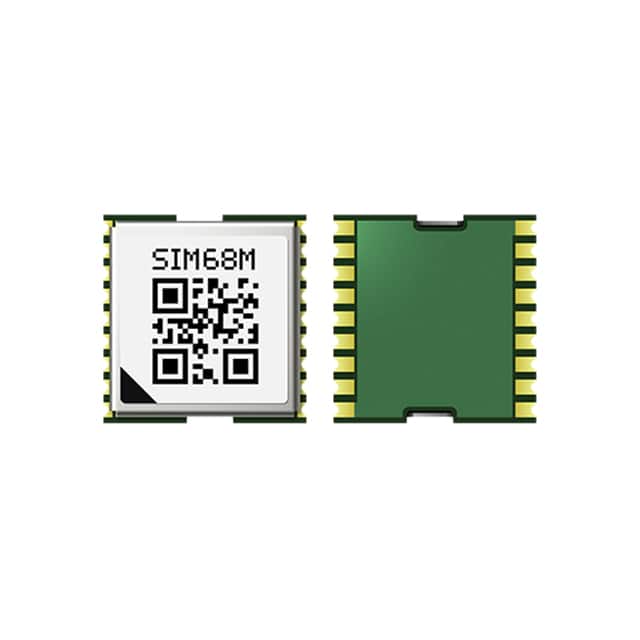

The SIMCom Wireless Solutions Limited SIM68M is a reliable GNSS module designed for high-sensitivity navigation. It integrates GPS and GLONASS systems in an SMT type package, utilizing MTK's navigation engine for industry-leading sensitivity, accuracy, and Time-to-First-Fix (TTFF) with low power consumption.
Key features include support for multiple satellite systems such as GPS, GLONASS, Galileo, and QZSS, along with EASY self-generated orbit prediction and EPOTM orbit prediction. It also supports SBAS ranging (WAAS, EGNOS, GAGAN, MSAS) and features jamming removal capabilities. The module includes an integrated low-noise amplifier.
With a compact mechanical dimension of 10.1*9.7*2.5mm and a weight of 0.5g, the SIM68M is suitable for various applications. It operates on a power supply range of 2.8V to 4.3V and has an operating temperature range of -40°C to 85°C. The module features a UART serial interface and supports NMEA and PMTK protocols.
This GNSS module is designed for surface mount installation and comes with an antenna not included. Its electrical specifications include power consumption figures for acquisition, tracking, AlwaysLocateTM, and backup modes, making it adaptable for power-sensitive designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SIM68M module supports GPS, GLONASS, Galileo, and QZSS.
The operating voltage range for the SIM68M module is 2.8V to 4.3V.
The SIM68M module operates in a temperature range of -40°C to 85°C.
The sensitivity of the SIM68M GNSS module is -165dBm.
The SIM68M module features a UART serial interface.
The SIM68M module comes in an 18-SMD Module package.
