| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,990 pcs
|
2990 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,979 pcs
|
2979 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Height Above Board | |
| Insertion, Removal Method | |
| Insulation Resistance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Tape & Reel | |
| Voltage Rating |

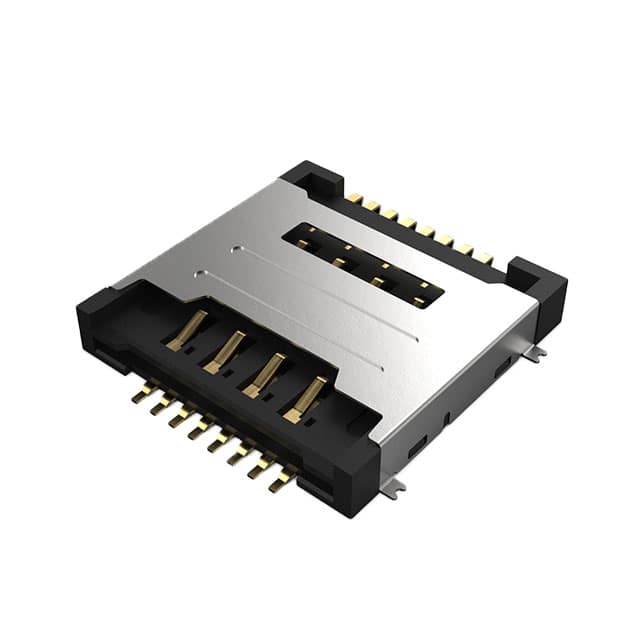

The SIM6050-8-0-30-00-A is a Mini SIM card connector from GCT (Global Connector Technology). It is part of the SIM6050 series and features a dual SIM design with 8 positions. The connector uses a push-pull insertion and removal method, making it suitable for applications requiring easy card access.
This connector is surface mounted with a right angle orientation, allowing for low-profile designs. It has a height above board of 3.00mm and gold contact finish with 3µin thickness for reliable electrical connections. The mounting feature is normal, standard-top.
Electrical ratings include 0.5A current per pin and 30V RMS voltage. The connector offers contact resistance of 20mΩ max, insulation resistance of 5000MΩ min, and dielectric withstanding voltage of 200VAC(RMS). It is rated for 5000 cycles of durability and operates over a temperature range of -40°C to +85°C.
The SIM6050-8-0-30-00-A is commonly used in mobile devices, IoT modules, and other electronics requiring dual SIM card connectivity. It is available in tape and reel packaging for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.52 | $1.52 |
| 10+ | $1.33 | $1.33 |
| 25+ | $1.27 | $1.27 |
| 100+ | $1.18 | $1.18 |
| 250+ | $1.07 | $1.07 |
| 700+ | $0.99 | $0.99 |
| 1,400+ | $0.89 | $0.89 |
| 2,100+ | $0.86 | $0.86 |
| 4,900+ | $0.82 | $0.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
0.5A per pin.
30V RMS.
Surface mount, right angle.
Gold with 3µin (0.076µm) thickness.
-40°C to +85°C.
5000 cycles.
