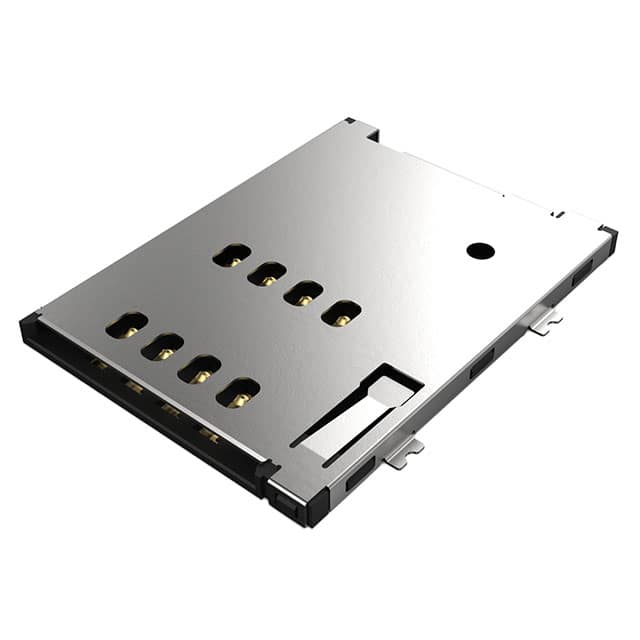

The SIM4065-8-1-15-00-A from GCT is a Mini SIM card connector featuring a push-push mechanism with 8 signal contacts and 1 card detect switch. It is designed for surface mount assembly with a right-angle orientation and a low 1.6mm profile above the board.
Electrical specifications include a maximum current rating of 1.0 A, a maximum voltage rating of 50 V AC (RMS), signal contact resistance of 100 mΩ and switch contact resistance of 300 mΩ (tested at 10mA, 20mV open circuit). Insulation resistance is a minimum of 1000 MΩ at 500 V DC, and dielectric withstanding voltage is 500 V AC without flashover. The operating temperature range is -40°C to +85°C.
Mechanically, the connector uses a push-in, push-out insertion and removal method. It features a gold contact finish of 0.76 µm (30.0 µin) and is designed for Mini SIM cards. The mounting type is surface mount, right angle, with a normal, standard-top mounting feature.
This connector is suitable for applications requiring a reliable SIM card interface in compact electronic devices. The card detect switch provides additional functionality for detecting card presence.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.14 | $2.14 |
| 10+ | $1.87 | $1.87 |
| 25+ | $1.79 | $1.79 |
| 100+ | $1.67 | $1.67 |
| 250+ | $1.51 | $1.51 |
| 500+ | $1.39 | $1.39 |
| 1,000+ | $1.23 | $1.23 |
| 2,000+ | $1.16 | $1.16 |
| 5,000+ | $1.11 | $1.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 9 positions: 8 signal contacts and 1 card detect switch.
1.0 A maximum.
50 V AC (RMS) maximum.
Surface Mount, Right Angle.
-40°C to +85°C.
100 mΩ maximum for signal contacts and 300 mΩ maximum for switch contacts.
Mini SIM cards.
