| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,663 pcs
|
3663 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating | |
| Durability | |
| Features | |
| Height Above Board | |
| Industrial Grade | |
| Insertion, Removal Method | |
| Insulation Resistance | |
| Medical Grade | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

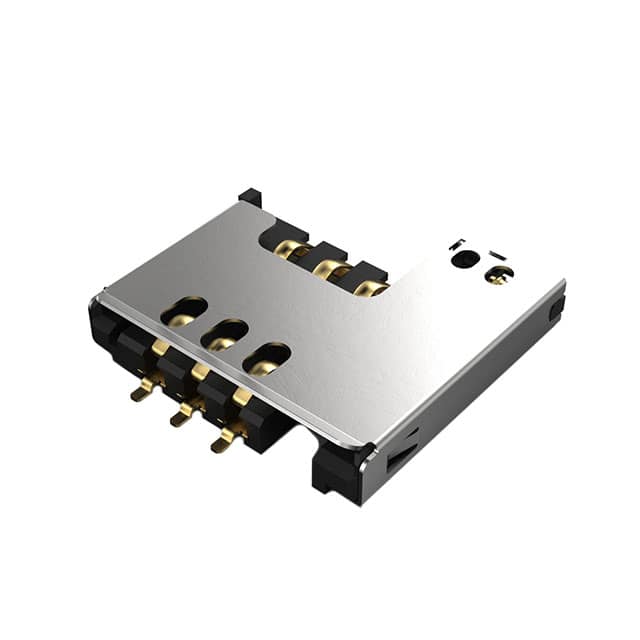

The GCT SIM2070-6-1-30-00-A is a Mini SIM card connector designed for surface mount applications with a right-angle orientation. It features 8 positions arranged as 6+2 with an integrated detection switch for card presence sensing. The connector accepts Mini SIM cards and uses a push-in, pull-out insertion and removal method.
Electrical ratings include a current rating of 0.5A maximum and a voltage rating of 30V AC (rms). Contact resistance is 100 mΩ maximum initial, insulation resistance is 1000 MΩ at 500V DC, and dielectric strength is 500V AC for 1 minute. The operating temperature range is -40°C to +85°C, with a storage temperature range of -25°C to +85°C and storage humidity of 45% to 75% RH.
The connector features gold-plated contacts with a thickness of 5.00 µin (0.127 µm) for reliable connectivity. It is rated for 5000 insertion/removal cycles, ensuring durability in applications such as mobile devices, IoT modules, and other equipment requiring a removable SIM card.
Packaging is for surface mount, right angle mounting, with a height above board of 0.135" (3.43mm). The connector is RoHS3 compliant (unverified), with MSL level 1 (unlimited) and REACH unaffected (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.67 | $1.67 |
| 10+ | $1.46 | $1.46 |
| 25+ | $1.40 | $1.40 |
| 100+ | $1.31 | $1.31 |
| 250+ | $1.18 | $1.18 |
| 700+ | $1.00 | $1.00 |
| 1,400+ | $0.96 | $0.96 |
| 2,100+ | $0.94 | $0.94 |
| 4,900+ | $0.88 | $0.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions (6+2) including a detection switch.
0.5 A maximum.
30 V AC (rms) maximum.
Surface mount, right angle.
-40°C to +85°C.
5000 cycles.
Gold plating, 5.00 µin (0.127 µm) thickness.
