| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Rating (Current) | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Release Time | |
| Switching Voltage | |
| Tape & Reel | |
| Termination Style |

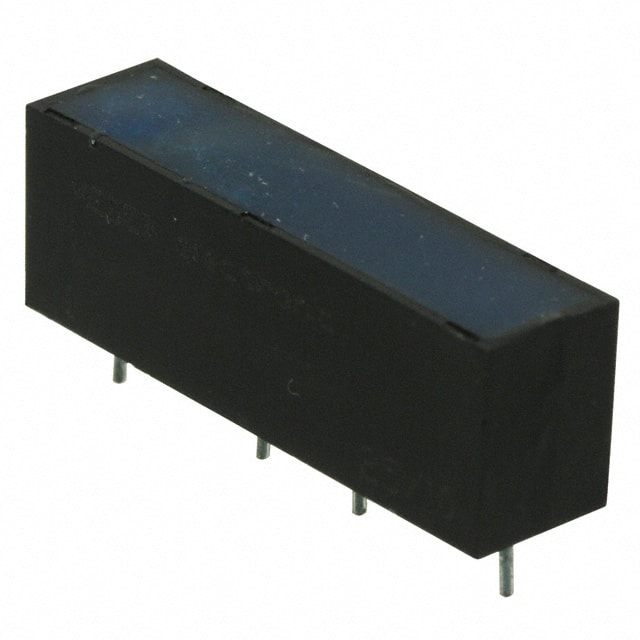

This Standex-Meder Electronics SIL12-1A72-71D is a reed relay designed for various switching applications. It features a Single Pole Single Throw Normally Open (SPST-NO) contact form, capable of handling a maximum current of 500 mA and switching voltages up to 200VAC/VDC.
The relay operates with a 12VDC coil voltage and a coil current of 12 mA. It requires a minimum operate voltage of 8.4 VDC and has a maximum release voltage of 1.8 VDC. The operate time is 0.7 ms, and the release time is 0.1 ms. The operating temperature range is from -20°C to 70°C.
Designed for through-hole mounting, this reed relay utilizes PC pin termination. It includes a diode feature for circuit protection. The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
This part is suitable for applications requiring reliable switching of low to moderate currents within its specified voltage and temperature limits.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 12VDC.
The contact rating is 500 mA.
The operating temperature range is -20°C to 70°C.
It has a SPST-NO (1 Form A) contact form.
It is mounted using the through-hole method.
