Mfr Part #:

SII9135ACTU

Mfr Name: Lattice Semiconductor Corporation

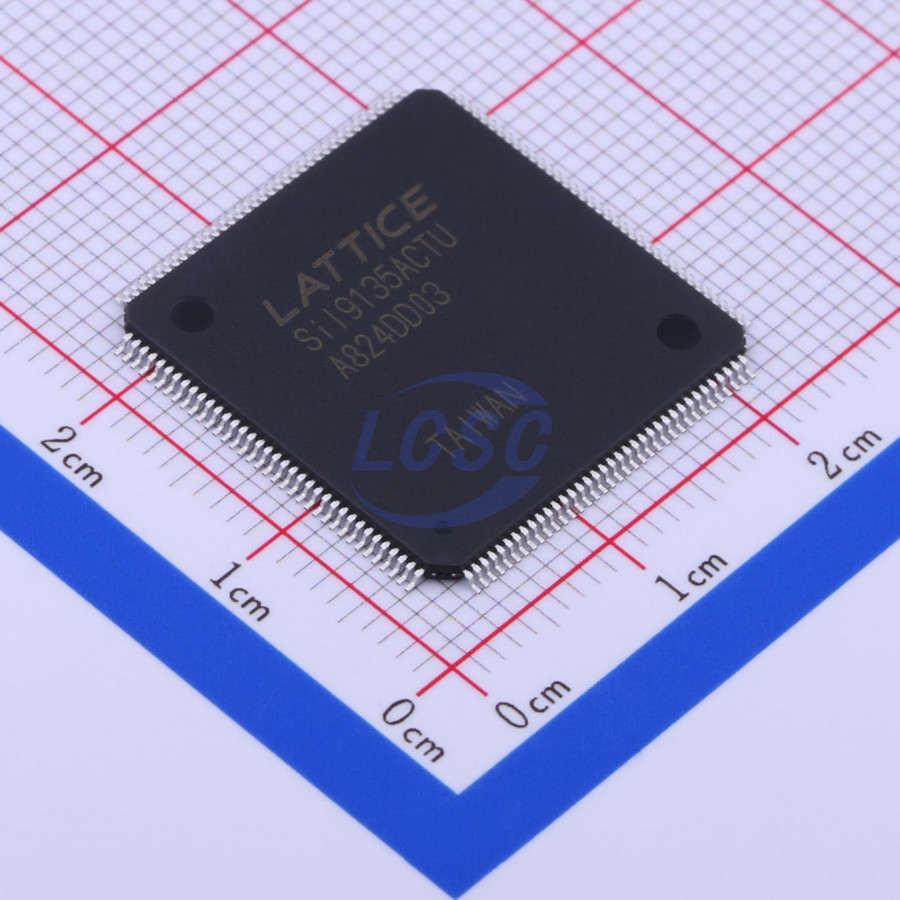

The Lattice Semiconductor SII9135ACTU is a dual-input HDMI v1.3 audio/video receiver IC. It supports high-definition video and multi-channel audio signals.

✓ Total Stock: 19,056 pcs

$ Price Range: $6.00

SII9135ACTU Available from 4 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	8,119 pcs On Request	8119 pcs	On Request	1	On Request	On Request	20+	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	7,999 pcs On Request	7999 pcs	On Request	1	On Request	On Request	21+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,738 pcs On Request	1738 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Rayichip ✓ Non-Authorised Inventory information	1,200 pcs On Request	1200 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SII9135ACTU Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Lattice Semiconductor Corporation
Package / Case	76-pin TQFP

View Similar Products (0)

SII9135ACTU Description

Short technical summary and product information.

The SII9135ACTU from Lattice Semiconductor Corporation is a high-definition multimedia interface (HDMI) receiver chip designed for digital video and audio signal reception. It adheres to the HDMI 1.3 specification, enabling higher bandwidth and deep color processing for enhanced video quality, supporting resolutions up to 1080p.

Key features include integrated High-bandwidth Digital Content Protection (HDCP) for secure content transmission, support for advanced audio formats like Dolby TrueHD and DTS-HD, and Consumer Electronics Control (CEC) for managing multiple HDMI-connected devices. The chip also incorporates On-Chip EDID for capability communication with sources and is designed for low power consumption.

Typically housed in a 76-pin TQFP package, the SII9135ACTU is suitable for applications requiring reliable HDMI input, such as set-top boxes, Blu-ray players, AV receivers, and home theater systems. Its compact design and feature set make it an ideal choice for integrating seamless HDMI functionality into consumer electronics.

Equivalent products may include the Analog Devices ADV7611, Texas Instruments TFP403, and NXP TDA19978, but specific application needs should be verified.

SII9135ACTU Quick Information

Product Type: HDMI Receiver IC

Canonical Name: SII9135ACTU Dual-input HDMI v1.3 Audio/Video Receiver

Subcategory: Embedded - Application Specific

SII9135ACTU Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SII9135ACTU Estimated Pricing

Qty	Low	High
1+	$6.00	$6.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

SII9135ACTU Features

Supports HDMI 1.3 specification.
Capable of 36-bit deep color processing.
Integrated HDCP for secure content.
Supports Dolby TrueHD and DTS-HD audio.
Low power consumption design.

SII9135ACTU Applications

Ideal for set-top boxes.
Used in Blu-ray players.
Suitable for AV receivers.
Component for home theater systems.
Enables seamless HDMI functionality.

SII9135ACTU FAQs

6 frequently asked questions generated from this part’s specifications.

What HDMI version does the SII9135ACTU support?

It supports the HDMI 1.3 specification.

What is the color depth supported by the SII9135ACTU?

It is capable of handling up to 36-bit color depth.

Does the SII9135ACTU have HDCP support?

Yes, High-bandwidth Digital Content Protection (HDCP) is integrated.

What audio formats are supported by the SII9135ACTU?

It supports various digital audio formats, including Dolby TrueHD and DTS-HD.

What resolution can the SII9135ACTU support?

It supports resolutions up to 1080p.

What package type is the SII9135ACTU available in?

It typically features a 76-pin TQFP package.
